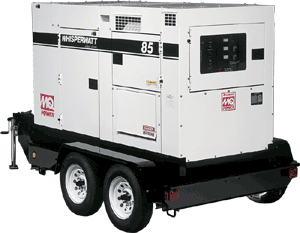

DCA-85USJ
The new Ultra-Silent Series generators are the world’s cleanest, quietest
and best performing power generation machines.
The DCA-85USJ generates standby output of 88kVA/70kW and
prime output of 82kVA/66kW. Powered by a 102-horsepower, 4-cylinder John Deere
4045TF275 diesel engine, the DCA-85USJ also features improved fuel efficiency
and voltage regulation, and residual value that is unmatched by any other
generator. The generator’s integrated fuel tank has a 24-hour run time and the
unit is offered with a standard electric starting system and improved frequency
regulation of 0.25 percent.
|
Specifications |
| Performance Data |
|
Standby Output KW (KVA) |
70 (88) |
|
Prime Output KW (KVA) |
66 (82) |
|
Generator RPM |
Revolving field, self-ventilated, dip proof |
|
Voltage - 3 phase |
Revolving field, self-ventilated, dip proof |
| Frequency |
60 Hz |
|
Sound Level dB(A) - full load 23 feet |
61 |
|
Amps - Single Phase 120V |
182.2A (4 wire), 250Ax2 (zigzag) |
|
Amps - Single Phase 240V |
91.2A (4 wire), 250A (zigzag) |
|
Amps - Three Phase - 240V |
197A |
|
Amps - Three Phase - 480V |
99A |
|
No. of Poles |
4 |
| Excitation |
Brushless, w/ AVR |
|
Voltage - Single Phase |
120, 127, 139, 240, 254, 277V switchable |
|
Armature Connection |
Star w/ neutral/zigzag |
|
Voltage Regulation - no load to full load |
1% |
|
Power Factor |
0.8 |
|
Generator Design |
Revolving field, self-ventilated, dip proof |
|
Frequency Regulation - no load to full load |
0.25% |
| Power Source |
|
Displacement cu. in (cc) |
4,500 cc |
|
Bore x Stroke (mm) |
106 x 127 |
|
Fuel Consumption - full load - gph (lph) |
5.7 (21.7) |
|
Fuel Consumption - 3/4 load - gph (lph) |
4.3 (16.4) |
|
Fuel Consumption - 1/2 load - gph (lph) |
3 (11.2) |
|
Fuel Consumption - 1/4 load - gph (lph) |
1.7 (6.3) |
|
Engine Coolant Capacity - gal (liters) |
3.7 (14) |
|
Fuel Tank Capacity - gal (liters) |
127 (480) |
| Battery |
12V 72Ah |
|
Engine Design |
4-cycle, water-cooled, direct injection, turbo |
|
Engine Model |
4045TF275 |
|
Oil Capacity - gal (liters) |
3.49 (13.2) |
|
Engine Make |
John Deere |
|
Starting System |
Electric |
|
No. Cylinders |
4 |
|
Horsepower (HP) |
102 |
| Dimensions |
|
Overall Height - in. (cm) |
71 (180) |
|
Overall Length - in. (cm) |
109 (277) |
|
Overall Width - in. (cm) |
49 (124) |
|
Approx Net Wt. lb (kg) |
4,780 (2,168) |
|
