MultiQuip Diaphragm Pumps

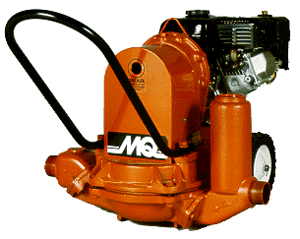

MQD-2H

Diaphragm pumps are built for long-life and reliable service in many applications. Favored by municipalities and contractors for street repairs and other seepage applications.

  • Ideal for muddy water, high solid content

  • Pumps up to 50 gallons (189 liters) per minute

  • Maximum lift of 25 feet (7.6 meters)

  • Driven by a 4-hp Honda gasoline engine

  • Oil bath transmission

  • Easily switches from inline to transverse flow
UNIT SPECIFICATIONS
Suction x Discharge 2 x 2 in
Max. Water Capacity 50 gpm
Max. Lift 25 ft
Max. Head 50 ft
Fuel Tank Capacity 2.6 gal
Optional Wheel Kit UWK
DIMENSIONS & WEIGHTS
Overall Length 41.5 in
Overall Length 30 in
Overall Height 29.9 in
Operating Weight 135 lb

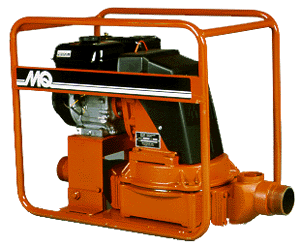

MQD-3HA

Our diaphragm pumps have proven themselves over decades with dependable performance and minimal maintenance.

  • Handles solids up to 1.5 inches (38 mm) in diameter

  • Pumps 85 gallons (322 liters) per minute

  • Driven by a 4-hp Honda engine

  • Excels in applications with high solid contents and seepage

  • Maximum suction lift of 25 feet (7.6 meters)

  • Easily swithes from inline to transverse flow
UNIT SPECIFICATIONS
Suction x Discharge 3 x 3 in
Max. Water Capacity 85 gpm
Max. Lift 25 ft
Max. Head 50 ft
Fuel Tank Capacity 2.6 gal
Optional Wheel Kit Wheel kit included with pump
DIMENSIONS & WEIGHTS
Overall Length 36 in
Overall Length 19 in
Overall Height 27 in
Operating Weight 123 lb



Click On The Model To Download The Manual

MQD-2H
MQD-3HA


MULMQD2H
$1,975.00 $1,599.97
"Diaphragm Pumps 2"" & 3"" gasoline powered 2"" Diaphragm 50 GPM, Honda GX-120 ==>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included. (PC1909)"""


MULMQD3H
$2,100.00 $1,701.24
"Diaphragm Pumps 2"" & 3"" gasoline powered 3"" Diaphragm 90 GPM, Honda GX-120 ==>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included. (PC1909)"""

MULA200A
$14.12
2" Alum Quick Connect (male) ****FREE FREIGHT Shipping On This Item ONLY When Purchase With Unit! Otherwise SEE the UPS Chart at Checkout

MULC200C
$27.63
2" Alum Quick Connect (female) ****FREE FREIGHT Only when ordered with a pump-Otherwise see UPS Chart ** NOTE: Any Residential/Tailgate or ReDelivery Charges NOT INCLUDED****"

MULHS220
$102.00 $81.60
"NPT Thread with Standard Fittings Suction Hose, 20 feet - 2"" ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULHS225
$114.00 $91.20
"NPT Thread with Standard Fittings Suction Hose, 25 feet - 2"" ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULHSQ220
$138.00 $110.40
" Suction Hose, 20 feet - 2"" Quick Coupler ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULHSQ225
$150.00 $120.00
" Suction Hose, 25 feet - 2"" Quick Coupler ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULHDQ250
$144.00 $115.20
" Discharge Hose, 50 feet - 2"" Quick Coupler ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULHD250
$114.00 $91.20
"NPT Thread with Standard Fittings Discharge Hose, 50 feet - 2' ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULA300A
$22.58
3" Alum Quick Connect (male) ****FREE FREIGHT Only when ordered with a pump-Otherwise see UPS Chart ** NOTE: Any Residential/Tailgate or ReDelivery Charges NOT INCLUDED****"

MULC300C
$40.74
3" Alum Quick Connect (female) ****FREE FREIGHT Only when ordered with a pump-Otherwise see UPS Chart ** NOTE: Any Residential/Tailgate or ReDelivery Charges NOT INCLUDED****"

MULHS320
$186.00 $148.80
"NPT Thread with Standard Fittings Suction Hose, 20 feet - 3"" ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULHS325
$204.00 $163.20
"NPT Thread with Standard Fittings Suction Hose, 25 feet - 3"" ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULHSQ320
$222.00 $177.60
" Suction Hose, 20 feet - 3"" Quick Coupler ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULHSQ325
$240.00 $192.00
" Suction Hose, 25 feet - 3"" Quick Coupler ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULHD350
$138.00 $110.40
"NPT Thread with Standard Fittings Discharge Hose, 50 feet - 3"" ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULHDQ350
$216.00 $172.80
" Discharge Hose, 50 feet - 3"" Quick Coupler ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"
