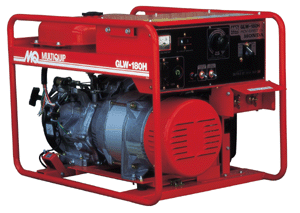

Multiquip's welder/generators are engineered with a new permanent magnet
alternator plus features typically found only on much larger welders.
Arc force control allows the operator to
fine tune DC current during low voltage welding
conditions and helps prevent electrodes froms sticking
during short arc length welding.
Ideal for job site and remote-area
service applications
Produces 50-180 amps for DC welding, 3kW
output to power AC tools.
Operator can draw AC power and weld
simultaneously
11-hp Honda GX340 gasoline engine
Permanent magnet
alternator-significantly reduces overall weight compared
to other welders in its class
General Features and
Options
AC/DC Simultaneous Use
Lifting Bale
Oil Level Automatic Safety Shutdown
Idle Switch
Optional Wheel Kit
UNIT SPECIFICATIONS
DC Voltage
CC: 26.8 V
DC Current
CC: 180A
Current Range
50-180 A
Max Duty Cycle w/
Full Amps Availible
50% @180 A
Welding Processes
SMAW, FCAW, GTAW,
ACAC
Fuel Tank Capacity
3.7 gal
Fuel Consumption at
Rated Load
0.93 gph
DIMENSIONS & WEIGHTS
Overall
Length
27.5 in
Overall Width
22 in
Overall
Height
23.75 in
Shipping Dimensions
28.5 x 23 x 28 in
Operating
Weight
225 lb
Shipping Weight
239 lb
ENGINE SPECIFICATIONS
Engine Make/Model
Honda GX-340
Start Method
Electric/Recoil
Engine Power
11 HP
Engine RPM
3600
Fuel Type
Gasoline
GENERATOR FEATURES
AC Power Output
(Single Phase)
3 kW
Cycle
60 Hz
Voltage
120 V
Amperage
25 A
Voltage Regulation
3 %
Receptacles
NEMA 5-20R 125V GFCI
20A
NEMA L5-30R
125V Twist-Lock 30A
