SPECIFICATIONS |
| Type: |

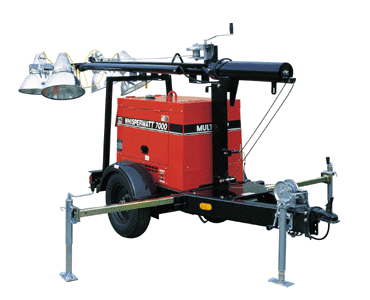

MODULAR LIGHT TOWERS |
NIGHT HAWK LIGHT TOWERS |
| Model # |
MLT-DA-7 GENERATOR |
MLT-SDW7 GENERATOR/ WELDER |
LT-12D |
LT-12P |
| Weight, lbs.
|
1644 |
1744 |
1550 |
1550 |
| Length, in. |
173 |
173 |
170 |
170 |
| Height, in |
70 |
70 |
74 |
74 |
| Width, in. |
50 |
50 |
51 |
51 |
| Max Tower Height, ft |
30 |
30 |
30 |
30 |
| Support Points |
4 |
4 |
4 |
4 |
| Wind Stability with genset,
mph |
72 |
72 |
65 |
65 |
| Ground Clearance, in. |
6.5 |
6.5 |
8.0 |
8.0 |
| Hitch Type |
2" ball
standard
3" pintle optional |
2" ball
standard
3" pintle optional |
2" ball
standard
3" pintle optional |
2" ball
standard
3" pintle optional |
| Tire Size |
13" |
13" |
13" |
13" |
| Winch Capacity, lbs |
1500 |
1500 |
1500 |
1500 |
| Winch Rope Wire |
3/16" |
3/16" |
3/16" |
3/16" |
| Fuel Tank Capacity, gal. |
30 |
30 |
30 |
30 |
| Run Time, 3/4 load, hrs |
48 |
48 |
64 |
64 |
| Engine Make |
Kubtoa Z482 Diesel |
Kubota Z482 Diesel |
Deutz Diesel |
Deutz Diesel |
| Engine HP |
12.5 |
12.5 |
12 |
10.7 |
| No. of
Cylinders |
2 |
2 |
3 |
3 |
| Engine RPM |
3600 |
3600 |
1800 |
1800 |
| Maximum
Generator Output, watts |
7000 |
6600 |
7000 |
7000 |
|
|
SPECIFICATIONS |
| Type: |
MODULAR LIGHT TOWERS |
NIGHT HAWK LIGHT TOWERS |
| Cont. Generator Output, watts |
6000 |
6000 |
6000 |
6000 |
| Maximum
Generator Output, watts |
7000 |
6600 |
7000 |
7000 |
| Cont. Generator Output, watts |
6000 |
6000 |
6000 |
6000 |
| Voltage |
120/240 |
120/240 |
120/240 |
120/240 |
| Amps at 120/240 V |
50/25 |
50/25 |
50/25 |
50/25 |
| Receptacles |
4 |
3 |
3 |
3 |
| Generator RPM |
3600 |
3600 |
1800 |
1800 |
| DC Welder--
Max Output, amp |
N/A |
225 |
N/A |
N/A |
| DC Welder--Voltage Range |
N/A |
15 to 28 |
N/A |
N/A |
| DC
Welder--Duty Cycle @ 200 amp |
N/A |
100% |
N/A |
N/A |
| DC Welder--Current Range, amp |
N/A |
50-225 |
N/A |
N/A |
| Floodlights |
4 -- 1000 watt
Metal Halide |
4 -- 1000 watt
Metal Halide |
4 -- 1000 watt
Metal Halide |
4 -- 1000 watt
Metal Halide |
| Lumens |
440000 |
440000 |
440000 |
440000 |
| Light
Coverage, acres |
5 to 7 |
5 to 7 |
5 to 7 |
5 to 7 |
| Light Termination |
4 x 3-pin QD Plug |
4 x 3-pin QD Plug |
4 x 3-pin QD Plug |
4 x 3-pin QD Plug |
| Sound Level
@ 23 ft, dB |
65.7 |
68.7 |
73 |
73 |
|
