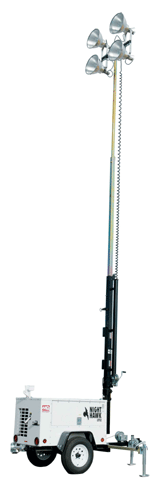

Whether you require lighting for a
construction site, industrial location or special event the
Night Hawk is the perfect choice for illuminating any
outdoor location.
 |
LT-12
-
Fully adjustable Metal Halide Lamps
– Four 1,000 watt lamps provide maximum illumination and
are controlled by individual circuit breakers for
versatility.
-
Engine Power– The Night Hawk
light tower is powered by a Deutz 1800-RPM,
liquid-cooled, diesel engine. Automatic shutdowns for
low oil pressure and high engine temperature are
standard.
-
Panel light — open the engine
access door and a panel light automatically illuminates
the control panel and all functions. Great for night
deployment.
-
Convenience Receptacles are
externally mounted for ac
cessibility without opening the side
panels. They are ideal for supplying power for hand
tools and small equipment while reducing the running
noise of the light tower
-
30 Gallon Fuel Tank provides up
to 64 hours of run time while running at ¾ load.
-
Outstanding wind stability of up
to 65 MPH with outriggers and jackstands fully deployed.
-
Trailer Design – withstands the
rigors of the jobsite in addition to providing smooth
highway towing.
-
Warranty – Warranty periods are
one year for the machine and three years (or 3,000
hours) for the Deutz diesel engine.
|
|
Specifications |
| Model |
LT-12D |
| Weight lbs |
1550 (ship) |
| Length, in. |
170 |
| Height, in. |
74 |
| Width, in |
51 |
| Max. Tower Height |
ft. 32 |
| Support Points |
5 |
| Wind Stability with genset, mph |
65 |
| Ground Clearance, in |
8.0 |
| Tire Size |
13" |
| Winch capacity, lb |
1,500 |
| Winch rope wire |
#/16" |
| Fuel Tank Capacity, gal. |
30 |
| Run time, ¾ load, hrs |
64 |
| Engine Make |
Deutz F3M1008F Diesel
|
| Engine HP |
12 |
| No. of cylinders |
3 |
| Engine RPM |
1,800 |
| Maximum Generator Output, watts |
6,600 |
| Cont. Generator Output, watts |
6,000 |
| Voltage |
120 /240 |
| Amp at 120 / 240V |
50 /25 |
| Receptacles |
2 |
| DC Welder--Max. Output, amp |
N /A |
| DC Welder-Voltage Range |
N /A |
| DC Welder--Duty Cycle @ 200 amp |
N /A
|
| DC Welder--Current Range, amp |
N /A |
| Floodlights |
4 1000 watt Metal Halide
|
| Lumens |
440,000 |
| Light Coverage, acres |
5 to 7
|
| Light Termination |
4 x 3-pin QD Plug
|
| Sound Level @23 ft |
dB 73
|
| Standard Hitch Type |
29228 — 2" Ball
— Bolt-On |
| Optional Hitches |
3" Pintle 29791 — Bolt-On Pintle Eye 29720 — Adjustable Height 2"Ball Kit
29721 — Adjustable Height Pintle Eye Kit |
|
| |
