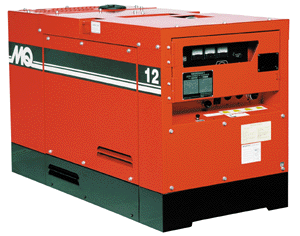

MultiQuip TLG-12SPX Generator

TLG-12SPX

Looking for high-speed performance? The TLG-12SPX is the answer.

At 3,600 rpm, the TLG12SPX is MQ Power’s fastest running generator. The compact unit produces 13kW standby output and 12kW prime output. Like the others members in the WhisperWatt line, this super-silent generator is powered by a fuel-efficient diesel engine offering long service life and requiring little maintenance. At 948 pounds (430 kg) it is the lightest model available.

SPECIFICATIONS
Performance Data
Standby Output
 13 kW
Prime Output
 12 kW
Generator RPM
 3600 RPMs
Generator Design
 Revolving Field Self-Ventilated Dip-Proof Single Bearing
Voltage Regulation - (No Load to Full Load)
 1.5 %
Power Factor
 1
Armature Connection
 Series
Excitation
 Brushless with AVR
No. Poles
 2 Pole
Frequency
 60 Hz
Available Voltages - Single Phase 120V
 120/240 Volts
Amps - Single Phase 120V
 50 (2 Sets) Amps
Amps - Single Phase 240V
 50 Amps
Insulation
 Class F
Sound Level dB(A) - Full Load at 23 feet
 67 dB(A)
Power Source
Engine Make / Model
 Isuzu 3LB1
Dimensions
Overall Length
 55 in. , 140 cm
Overall Width
 27 in. , 69 cm
Overall Height
 33 in. , 85 cm
Approx. Net Wt. Dry
 948 lbs. , 430 kg.



Click Here For Product Brochure To Check Out More Features And Specifications

MULTLG12SPX4C
$13,500.00 $9,758.88
"20.5 hp@ (Rated Speed), 24.8 (Gross) Kubota diesel, Tier IV 68 dB(A), electric start, 13.5 Gallon Fuel Tank with Idle control (12KW 120/240) :::: Call 800-458-3687 For Freight Pricing"

MULTRLRMP
$1,650.00 $1,336.68
"Accessories for Portable Generators & Welders Hwy Trailer for BLW300 & DAW500 welders, no fuel cell ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULTRLRMPXF
$2,870.00 $2,325.02
Accessories for Portable Generators & Welders Hwy Trailer ~ same as TRLRMP with 30 gallon fuel cell - all models ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)

MULMQPHEAT
$450.00 $359.91
"Direct Immersion engine pre-heater for DA7000, DCA10, TLG12, DCA15, DCA70 - DCA220 ====> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"""
