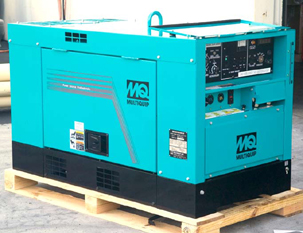

MultiQuip DLW-300SS Welder

The new DLW300ES welder/generator delivers superior arc characteristics and consistent weld quality.

Features

  • 300-amp constant current welder and 10kW generator doubles utilization

  • New "E-Mode" improves fuel efficiency by allowing the operator to weld with engine at idle speed at up to 160 amps. Reduces operating cost and noise levels.

  • Arc Force Regulator allows the operator to fine tune the arc characteristics according to job requirements

  • Brushless alternator design reduces maintenance and voltage regulation of 1.5% maximizes the service life of your equipment

  • Quietest welder in the industry- only 59 dBA @ 23'

  • Dependable Kubota engine features electric start and automatic idle control

  • Automatic safety shutdown for low oil pressure water temperature, low battery charge. DC thermal overload protects welder against overheating

  • External drains for water, oil and fuel simplify maintenance and reduces service time


Specifications
Model DLW300ES
DC Voltage 31V
DC Current 300 A
100% Duty Cycle 280 amp
Current Range, amp 35 to 300
DC Current— Constant Current Standard
Welding Process — SMAW Standard
Welding Process — FCAW Standard
Welding Process — GTAW Standard
Welding Process — ACAC Standard
AC kW Single Phase 10
Cycle 60
Voltage 120/240
Amerage 87/44
Voltage Regulation

1.5%
Receptacles NEMA L6-30R 250V 30A twist lock; NEMA L5-30R 125V 30A
twist lock; CS-6369 125/250V 50A twist lock; NEMA 5-20R
125V duplex 20A w/GFCI
Engine Model Kubota D722
No. Cylinders; HP; RPM 3; 19; 3600
Fuel Type Diesel
Fuel Tank Capacity gal 9.5
Fuel Consump. at full load 1.1 gph
Fue. Consump. in E-mode at 120 amps  0.39 gph
Electric Start, Idle Switch Standard
Simultaneous Use — AC/DC Standard
Noise Level — dBA @ 23 ft.  59
Lifting Bale Standard
External Drains Water, Oil, Fuel
Automatic Safety Shutdowns Oil Pressure; Water, Temperature; Thermal Switch DC; Low Battery Charge
Dimensions — LxWxH in. 50 x 27 x 32
Dry Weight lb. 842
Optional Trailers TRLR10W, TRLRMPXF*
Includes 20 gal. fuel cell



TLW-300SS-small.gif MULDLW300ES
$12,070.00 $9,656.00
"300 Amp welder, 10.5 kW Generator, Kubota diesel Portable DC-Welders/ AC-Generators >>>>> FREE FREIGHT To Any Commercial in the Upper 48 States ***NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! PC-111908"

MULTLW300SSWR
$14,280.00 $12,240.00
"Portable DC-Welders/ AC-Generator-300ampWelder, 10.5KW, 120/240V Gen., 19hp Kubota Diesel (tier2); remote control ****FREE FREIGHT Anywhere in The Continental US ** NOTE: Any Residential/Tailgate or Re-Delivery Charges NOT INCLUDED****"


MULDLW300AT10W
$15,185.00 $12,301.55
"Portable DC-Welders/ AC-Generators - Gasoline Powered 300 DC Welder, 10.5KW Generator, Kubota Diesel T-4 ==>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included. (PC1909)"""


MULDLW300ATMP
$15,435.00 $12,504.08
"Portable DC-Welders/ AC-Generators - Gasoline Powered 300 DC Welder, 10.5KW Generator, Kubota Diesel T-4 ==>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included. (PC1909)"""


MULDLW300ATMXF
$16,655.00 $13,492.42
"Portable DC-Welders/ AC-Generators - Gasoline Powered 300 DC Welder, 10.5KW Generator, Kubota Diesel T-4 ==>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included. (PC1909)"""


MULDLW300ESA
$13,635.00 $11,045.88
"Portable DC-Welders/ AC-Generators - Gasoline Powered 300 DC Welder, 10.5KW Generator, Kubota Diesel, T-4 ==>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included. (PC1909)"""


MULDLW300ESAWR
$14,320.00 $11,600.80
"Portable DC-Welders/ AC-Generators - Gasoline Powered 300 DC Welder, 10.5KW Generator, Kubota Diesel T-4 ==>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included. (PC1909)"""


MULDLW300ESWR
$12,365.00 $9,892.00
"300 Amp welder, 10.5 kW Generator, Kubota diesel - remote control installed Portable DC-Welders/ AC-Generators >>>>> FREE FREIGHT To Any Commercial in the Upper 48 States ***NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! PC-111908"


MULDLW300T10W
$13,370.00 $10,696.00
"300 Amp welder, 10.5 kW Generator, Kubota diesel - w/TRLR10W Portable DC-Welders/ AC-Generators >>>>> FREE FREIGHT To Any Commercial in the Upper 48 States ***NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! PC-111908"


MULDLW300TMP
$13,540.00 $10,832.00
"300 Amp welder, 10.5 kW Generator, Kubota diesel - w/TRLRMP Portable DC-Welders/ AC-Generators >>>>> FREE FREIGHT To Any Commercial in the Upper 48 States ***NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! PC-111908"


MULDLW300TMXF
$14,620.00 $11,696.00
"300 Amp welder, 10.5 kW Generator, Kubota diesel - w/TRLRMP & 30 gal. fuel cell Portable DC-Welders/ AC-Generators >>>>> FREE FREIGHT To Any Commercial in the Upper 48 States ***NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! PC-111908"
