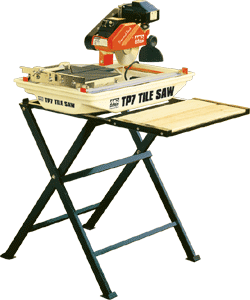

MultiQuip TP 7 Tile Saw

Multiquip’s Tile Pro Tile Saws are portable, powerful cutting tools ideal for professional cutting of ceramics, stone and masonry materials.

The TP7 is a lightweight, compact tile saw. The sturdy steel precision frame is matched with a cast aluminum oversized conveyor cart. An innovative water-cooled bearing assembly works with the water pump to keep key bearing components running cooler. A thermal plastic water tray reservoir will not rust nor bend out of shape.

  • Compact, rugged frame assembly for easy transport and storage

  • Electric induction UL/CSA-approved motor with thermal overload and fan cover protection

  • High-impact thermal plastic tray won't rust or bend out of shape

  • Rugged cast aluminum table with heavy-duty injection molded rubber padding. Industrial ball bearing rollers ensure smooth, precise cart movement

  • Maintenance-free submersible water pump provides high volume water flow

  • Heavy cast aluminum blade guard evenly distributes water to the blade

  • Combination 45/90 degree rip guide and 45 degree miter block included

  • Premium 7 inch (178 mm) tile blade included




Specifications

Performance Data
Blade Guard Style Cast aluminum
Blade Guard Size/Max. Depth of Cut 7"--1 3/4"
Blade Shaft Diam.(in) 5/8
Blade Shaft Bearings Water cooled, maintenance free
Blade Shaft Drive V-belt
Saw Lifting Ball Lifting handles
Power Source
Engine HP; rpm 3/4, standard, 60Hz
Emergency Engine On/Off w/thermal overload
Dimension
Shipping Weight-lbs(kg) 43(19.5)


MULTP7
$685.00 $617.27
"Tile Saws - Pro Series 7"" Blade Guard, 17"" Tile, 0.5HP 115V, 60Hz *** Free Freight to any Commercial Address within the Lower 48 States. Note: Residential or Limited Access and Tailgate Deliveries NOT INCLUDED (PC030510)"

MULTSS7
$163.89 $139.36
"Tile Pro Series Accessories Support Stand Kit, w/Workbench, TP/TS7 Saws *** Free Freight ONLY When added to a Multiquip Gas, Diesel or Electric Equipment Order (PC030510)"


MULTSS10A
$163.89 $139.36
"Tile Pro Series Accessories Support Stand Kit, w/Workbench, TP/TS10 Saws *** Free Freight ONLY When added to a Multiquip Gas, Diesel or Electric Equipment Order (PC030510)"
