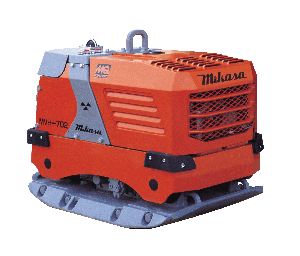

MultiQuip MVH-70DSRC Remote Control Plate Compactor

Model: MVH-702DSRC

Remote control reversible plate compactor, 25.5" wide plate with standard plate extensions (working width of 31.5"). 18,000 ibs. centrifugal force.

Performance Data:

	Maximum Area Capacity sq. ft. (sq. m) pm: 14,490 (4416)
	Centrifugal Force lbs. (kg): 18,000 (8163 kg)
	Maximum Forward Speed Ft/MIN (M/MIN): 92 (28)
	Exciter Speed RPM: 3120
	Gradeability, degrees (°): 15

Power Source:

	Engine Power - HP (kw): 15.5 (11.4)
	Engine Model: 43F
	Engine Make: Farymann

Dimensions:

	Plate Size WxL: 35.5" x 42.5"
	Size W/O Extensions WxL: 25.5" x 42.5"
	Operating Weight lbs. (kg): 1,545 (700)
