Norton Tile Saws

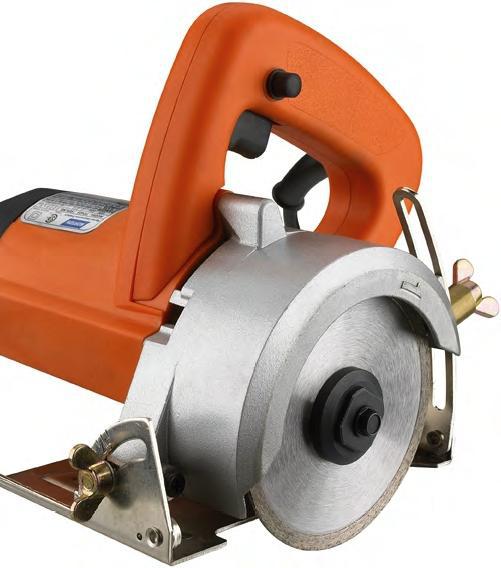

TC405 HAND-HELD TILE SAW

This is the portable solution for dry or wet cutting on smaller jobs. The 115 volt, single phase motor provides all the power you need combined with a built-in miter and depth adjustment to produce clean, accurate cuts every time

  • Wet Cut Kit (included) Easy attaching water control
  • 1/2 HP for Ample Cutting Powerful clean cuts in hard materials
  • Built-in Miter Cut Capability Simple tilting miter table for cutting up to 45 deg
SPECIFICATIONS
Model TC405
Product Number 70184682709 6
Blade Guard Capacity  in. (mm) 5 (127)
Maximum Depth of Cut  in. (mm) 1-1/4 (31)
Arbor Size  in. (mm) 20mm
Blade Flange Diameter  in. (mm) 1.41 (36)
Blade Shaft RPM 12,000
Cut Depth  in. (mm) 1-3/16 (30)
Built-In 45 deg Miter Cut YES
Power Source Electric
Motor/Engine Type Universal Brush
Maximum Horsepower 1/2 HP
Voltage 115 volt
Cycle/Current/Phase 60 Hz/AC/1
Full Load Amps 5 Amp
Saw Length  in. (mm) 9-3/8 (238)
Saw Width  in. (mm) 7-7/8 (200)
Saw Height  in. (mm) 6-1/2 (165)
Weight Crated  lbs (kg) 8 (3.6)
Weight Uncrated  lbs (kg) 6.4 (2.9)

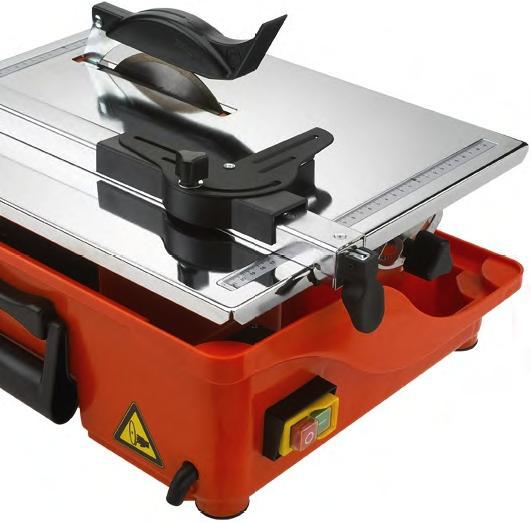

CTC701 TILE SAW

The simple design of the tabletop tile saw features a powerful professional motor that veterans and novices alike will enjoy operating. Its solid construction incorporates a self-contained water pan with plug release, tilting table for miter cuts and a fast, precise lockable cutting guide. The robust carrying case allows for easy transportation or storage while protecting the unit.

  • Built-In Water Pan Single unit design with optimized water recycling.
  • Chrome Steel Tilting Table Convenient for miter cutting of 0 - 45 deg cuts with a tilt design to allow for quicker blade changes.
  • Quick Locking Rip Guide Secures guide position for precise cuts.
SPECIFICATIONS
Model CTC701
Product Number 70184630029 2
Blade Guard Capacity  in. (mm) 7 (177)
Maximum Depth of Cut  in. (mm) 2-1/4 (57)
Arbor Size  in. (mm) 5/8
Blade Flange Diameter  in. (mm) 3 (78)
Blade Shaft RPM 2,990
Cut Depth  in. (mm) 1-9/16 (40)
Cutting Head Steel
Built-In 45 deg Miter Cut YES
Cutting Table Chrome Steel
Water Pump Blade Rotates In Water Pan
Power Source Electric
Motor/Engine Type T.E.F.C.
Maximum Horsepower 1.5 HP
Voltage 115 volt
Cycle/Current/Phase 60 Hz/AC/1
Full Load Amps 7 Amps
Saw Length  in. (mm) 18.11 (460)
Saw Width  in. (mm) 14.17 (360)
Saw Height  in. (mm) 11-7/16 (290)
Weight Crated  lbs (kg) 40 (18)
Weight Uncrated  lbs (kg) 35 (15.9)

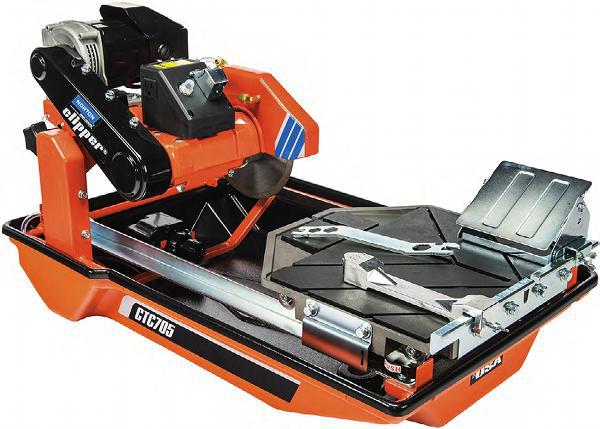

CTC705 TILE SAW

CTC705 TILE SAW
A great value for a 7 inch tile saw that can handle the small to medium size jobs. This saw has many features of more expensive tile saws, like a belt-driven 1 HP motor for maximum motor-to-blade power. A sturdy aluminum cutting table with anti-skid top for keeping material in place while cutting and a light-weight water pan for easy cleaning and/or single operator use getting on and off the site.

  • Motor Upgrade Strong belt-driven 1 HP motor provides powerful and precise cutting
  • Light-Weight Conveyor Smooth slide creates straight cuts and has a locking mechanism for easier transportation.
  • Water Pump High intake and output to keep fresh water in pan with a durable filter to keep debris out.
TECHNICAL SPECIFICATIONS CTC705
Model CTC705
Product Number 70184681496 6
Blade Guard Capacity in. (mm) 7 (177)
Maximum Depth of Cut  in. (mm) 2-1/4 (57)
Arbor Size  in. (mm) 5/8
Blade Flange Diameter  in. (mm) 2-1/2 (66)
Blade Shaft RPM 6000 RPM
Maximum Material Size  in. (mm) 17 (431)
Rip Cut Size  in. (mm) 17 (431)
Diagonal Size  in. (mm) 12 (305)
Cut Depth  in. (mm) 1-3/4 (44.5)
Cutting Head Cast Aluminum
Built-In 45 deg Miter Cut No
Cutting Table Aluminum
Water Pump Yes
Power Source Electric
Motor/Engine Type Carbon Brush
Maximum Horsepower 1 HP
Voltage 115 volt
Cycle/Current/Phase 60 Hz/AC/1
Full Load Amps 10 Amps
Saw Length  in. (mm) 30 (762)
Saw Width  in. (mm) 19-3/4 (502)
Saw Height  in. (mm) 17-1/2 (445)
Saw Height With Stand  in. (mm) 47-3/4 (1213)
Arbor to Top of Cart  in. (mm) Adjustable
Cart (Table) Length in. (mm) 14-1/4 (362)
Cart (Table) Width  in. (mm) 15 (381)
Cart Travel  in. (mm) 18-3/4 (477)
Pan Length  in. (mm) 30 (762)
Weight Crated  lbs. (kg) 50 (22.7)
Weight Uncrated  lbs. (kg) 43 (19.5)

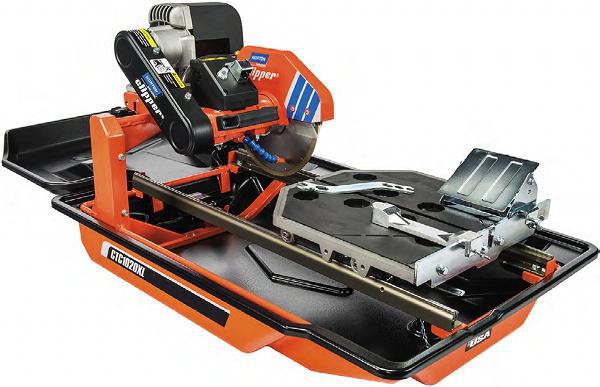

CTC1020XL TILE SAW

Built with the professional in mind, the CTC1020XL is the newest to the tile industry. The powerful 2HP motor makes ripping materials, up to 24 inch, trouble-free. The combination of having a light-weight, sturdy frame and a newly designed polypropylene pan, to help reduce area contamination, gives an operator all the essentials to get the job done quickly and efficiently.
  • 2HP Motor More powerful than using conventional 1.5HP and can make a rip cut of 24" tile
  • Light-Weight 60 lbs vs. standard 100-125 lbs for easier transportation
  • Aluminum Rails with Stainless Insert Provides long life and easy portability due to low coefficient of friction, creating smoother slide
TECHNICAL SPECIFICATIONS CTC1020XL
Model CTC1020XL
Product Number 70184630013 1
Blade Guard Capacity  in. (mm) 10 (254)
Maximum Depth of Cut  in. (mm) 3-3/4 (88)
Arbor Size  in. (mm) 5/8
Blade Flange Diameter  in. (mm) 3 (78)
Blade Shaft RPM 3,000
Maximum Material Size  in. (mm) 24 x 24
Rip Cut Size  in. (mm) 24 (610)
Diagonal Size  in. (mm) 18 (457)
Cut Depth  in. (mm) 3-3/4 (95)
Cutting Head Cast Aluminum
Built-In 45 deg Miter Cut NO, Includes Miter Block
Cutting Table Aluminum With Rubber Coating
Water Pump YES
Power Source Electric
Motor/Engine Type Brush Motor with Thermal Protection
Maximum Horsepower 2 HP
Voltage 115 volt
Cycle / Current / Phase 60 Hz/AC/1
Full Load Amps 8 Amp
Saw Length  in. (mm) 51-7/8 (1318)
Saw Width  in. (mm) 25-3/16 (640)
Saw Height  in. (mm) 20-7/8 (530)
Saw Height With Stand  in. (mm) 41-13/16 (1240)
Arbor to Top of Cart  in. (mm) 4-3/4 (120)
Cart (Table) Length  in. (mm) 16 (406)
Cart (Table) Width  in. (mm) 16-9/64 (410)
Cart Travel  in. (mm) 22-5/8 (575)
Pan Length  in. (mm) 51-7/8 (1318)
Pan Width  in. (mm) 25-3/16 (640)
Weight Crated  lbs (kg) 75 (34)
Weight Uncrated  lbs. (kg) 65 (29.5)



Models and Accessories
TC405 Hand Held Tile Saw
CTC701 Tile Saw
CTC705  7 inch Tile Saw
CTC1020XL Tile Saw 10 inch Blade
CON45DT Tile Saw Blade
CON7WT 7 x.065x5/8 Norton Classic
CON10WT 10 inch x .060x5/8 Norton Classic



TC405
HAND HELD 115V - 115/1 VOLTS - EQUIPMENT - TILE SAWS
Mfg. item #: TC405
NORTC405
Ships FREE via UPS to lower 48 states.5
Call for Price

520
CTC701
7 BLADE CAPACITY/ADJUSTABLE ANGLE GUIDE - 115/1 VOLTS - EQUIPMENT - TILE SAWS
Mfg. item #: CTC701
NORCTC701
Ships FREE via UPS to lower 48 states.5
Call for Price

520
CTC705
7 BLADE CAPACITY - 115/1 VOLTS - EQUIPMENT - TILE SAWS
FREE NORTON DIAMOND SAW BLADE WILL BE INCLUDED WITH THIS SAW - LIMITED TIME OFFER
Mfg. item #: CTC705
NORCTC705
Ships FREE via UPS to lower 48 states.5
Call for Price

520
CTC1020XL
10 BLADE CAPACITY - 115/1 VOLTS - EQUIPMENT - TILE SAWS
FREE NORTON DIAMOND SAW BLADE WILL BE INCLUDED WITH THIS SAW - LIMITED TIME OFFER
Mfg. item #: CTC1020XL
NORCTC1020XL
Ships FREE via UPS to lower 48 states.5
Call for Price

520
CON45DT
DIAMOND AND ABRASIVE BLADES - GOOD - CONTINUOUS RIM BLADES FOR TILE _ DRY CUTTING 4-1/2 X .080 X 7/8-5/8-20MM
Mfg. item #: CON45DT
NORCON45DT
Ships FREE via UPS to lower 48 states.5
Call for Price

520
CON7WT
DIAMOND AND ABRASIVE BLADES - GOOD - CONTINUOUS RIM BLADES FOR NATURAL STONE AND TILES _ WET CUTTING 7 X .065 X 5/8
Mfg. item #: CON7WT
NORCON7WT
Ships FREE via UPS to lower 48 states.5
Call for Price

520
CON10WT
10X.060X5/8 NORTON CLASSIC
Mfg. item #: CON10WT
NORCON10WT
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
