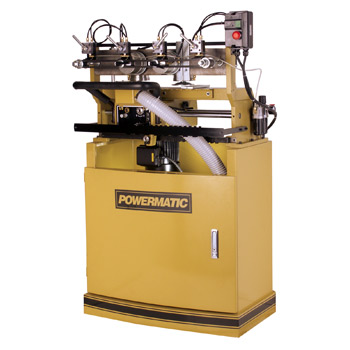

 DT65 Single End
Dovetailer
Powermatic’s
new DT65 single spindle dovetailer gives quality to the most popular joints of
drawer construction. It provides an affordable way to produce cleanly cut,
quality dovetails and enhance your products. The DT65 is complete with 1 HP 230V
1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and
a four-sided template that produces dovetails on 1”, 1-9/16”, 2”, and 3-1/8”
centerlines. The use of different dovetail centerlines gives a unique custom
appearance
|
FEATURES
-
Four separate dovetail
centerlines
-
1HP 230V 1 phase motor
-
Eccentric spindle collect
for resharpened cutters
-
Cutter height of 3/16” to
3/4”
-
Pneumatic clamping
provides quick locking and unlocking of the workpiece
-
Extra large softgrip
handle provides positive control and comfort
-
The precision linear
carriage bearings are sealed on both ends to eliminate dust buildup
-
Visual stylus and template
mounting aid in guiding the carriage
-
Spring loaded carriage
makes for smooth, effortless dovetail cutting
-
Material stops provide
convenient postioning of the workpiece
-
Cast iron and steel
construction for added stability and durability
 |
|
|
|
Specifications |
|
Model Number |
DT65 |
|
Stock Number |
1791305 (1HP, 230V, 1Ph) |
|
Minimum Work Piece
Size (L x W) |
7-7/8" x 2-3/8" |
|
Maximum Work Piece Size |
59"x 16-1/2" |
|
Minimum Dovetail
Height |
3/16" |
|
Maximum Dovetail Height |
4-3/4" |
|
Minimum Front
Thickness |
9/32" |
|
Maximum Front
Thickness |
2-3/8" |
|
Minimum Side Thickness |
3/8" |
|
Maximum Side Thickness |
1-3/16" |
|
Number of Spindles |
1 |
|
Spindle Speed |
18,500 RPM |
|
Table Height |
45" |
|
Center to Center
Dovetail Spacing |
1", 1-9/16", 2" and
3-9/16" |
|
Overall Dimensions (W
x H x L) |
44" x 63" x 37" |
|
Motor (TEFC) |
1HP, 1Ph, 230V |
|
Dust Collection Port |
2-1/2" |
|
Dust Collection CFM
Required |
500 |
|
Shipping Weight
|
564 lbs. |
|
|
|
