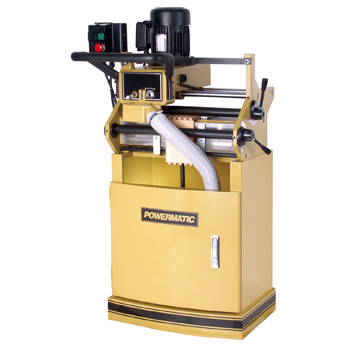

 Single End Dovetailer
-
The Model DT45 Dovetailer will make cleanly cut half-blind dovetails for drawer
or box construction.
-
A four sided template allows any of four pitches, from 1"
up to 2 1/2".
-
The use of different dovetail pitches will give a unique custom
appearance to your work.
-
The cutter is carbide-tipped.
-
The machine is built to
last with cast iron and steel construction.
-
The manual clamping system is quick
and easy to use.
|
|
Specifications |
|
Model Number |
DT45 |
|
Stock Number |
1791304 |
|
Min. work piece size (in) |
7 7/8 x 2 3/8 |
|
Max. work piece size (in) |
31 x 11 |
|
Min. dovetail height (in) |
3/16 |
|
Max. dovetail height (in) |
3/4 |
|
Min. front thickness (in) |
9/32 |
|
Max. front thickness (in) |
1 3/4 |
|
Min. side thickness (in) |
9/32 |
|
Max. side thickness (in) |
1 3/16 |
|
Number of spindles |
1 |
|
Spindle speed (rpm) |
18,500 |
|
Center to center dovetail spacing (in) |
1, 1 1/2, 2, 2 1/2 |
|
Table height from floor (in) |
35 |
|
Overall dimensions (l x w x h) (in) |
33 x 33 x 61 |
|
Motor |
TEFC, 1HP, 1Ph, 115/230V (prewired 115) |
|
Dust collection ports diameter (in) |
front 2 1/2, rear 4 |
|
Dust collection minimum CFM required |
500 |
|
Approx. weight |
447 |
|
