PowerMatic Line Boring Machine at Southern Tool Catalog

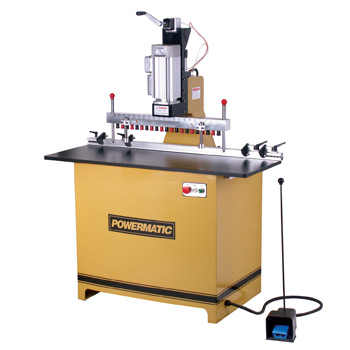

This new 21 spindle line boring machine has everything needed to do 32mm line boring. It’s ideal for drilling shelf supports, hinges, etc. The LBM21 features a powerful 2-1/2HP motor that starts only when the pneumatic feed cycle is activated by the foot pedal, extending service life and saving power. Steel gears transmit plenty of power to the spindles at 2450 RPM. The large 20" x 28" table provides plenty of work support and slides on two tracks, keeping the fence parallel to the head at all times. A 60" fence with 4 flip stops locates material with precision. Two manual head mounted index pins provide precise positioning of longer stock

Features

2.5HP, 1Ph, 230V motor
Top drilling
21-spindle gear driven drill head with hardened steel gears
32mm spindle centers
11 right hand and 10 left hand spindles
10mm quick change spindle chucks
3450 RPM spindles
Head mounted index pins
0" – 2" drilling depth stroke
60" adjustable offset backfence
4 adjustable fence stops
6" maximum backfence offset

Specifications

Model
LBM21 CBM21

Stock Number (2.5HP, 1Ph, 230V)
1791301 1791302

Distance between centers (mm)
32 32

Spindle Speed (RPM)
3450 3450

Number of Spindles
(21) 11 right, 10 left (21) 11 right, 10 left

Depth of Stroke (in.)
2 3 1/8

Table Surface (L x W/in.)
49 x 19 35 x 17 1/3

Quick Change Collet Size (mm)
10 10

Table Height from Floor (in.)
33 34

Backfence Adjustment (in.)
60 right, 60 left

Backfence stops
4 6

Air Pressure Required (PSI)
90 90

Overall Dimensions (L x W x H/in.)
49 x 24 x 63 49 x 31 x 48

Weight Shipping/Net (lbs.)
526/340 841/682

Includes the following:
21 quick chucks, foot pedal, 2 manual index pins, adjustable backfence 21 spindles w/quick chucks, fences w/stops, foot pedal, tool kit
