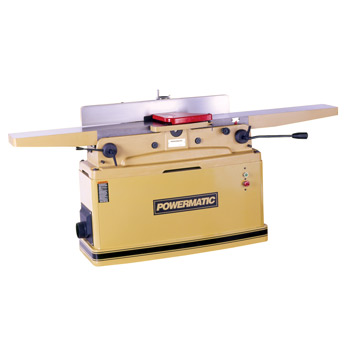

PowerMatic Parallelogram Jointer

8" Parallelogram Jointer

The new 8" Parallelogram Jointer offers performance and value in a machine loaded with features like an extra long 82" bed length for better work support, innovative fence design that allows you to turn a handwheel that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid surface during adjustments. The parallelogram scratching the design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of of tough duty. The 1/8" depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will diable this feature. This jointer features Powermatic controlled chip 3-knife cutterhead for a safe, smooth cut every time. The powerful 3HP motor is totally enclosed in a heavily constructed steel stand providing plenty of power for even the most demanding jobs

Features

  • 2HP, 1Ph or 3HP, 3Ph motors

  • Large 8" x 82" table surface

  • 1/8" depth of cut limiter control knob

  • Hand wheel fence tilting

  • No-mar fence insert



Optional Accessories

  • 1610078--Mobile base

  • 6296046--8" knives (set of 3)

Additional Documentation
Woodworking Catalog Page
Adobe Acrobat Required to read these files.



Specifications
Stock Number (2 HP, 1 Ph, 230V): 1610079 1610082
Stock Number (3 HP, 3 Ph, 230V): 1610080 1610083
Model: PJ882 PJ882HH
Cutting Capacity (WxD/in): 8 x 1/2 8 x 1/2
Cutterhead Speed (RPM): 7,000 7,000
Number of Knives: 3 54 four-sided inserts
Rabbeting Capacity (in): 1/2 1/2
Table Surface (WxL/in): 8 x 83 8 x 83
Fence (HxL/in): 4-3/4 x 38-3/16 4-3/4 x 38-3/16
Blade Size (LxWxT/in): 8 x 11/16  x 1/8 8 x 11/16 x 1/8
Fence Tilts: 45 degrees 45 degrees
Positive Stops: 90 degrees, 45 degrees 90 degrees, 45 degrees
Motor (TEFC): 3 HP, 2 Ph, 230V/460V or
2 HP, 1 Ph, 230V
3 HP, 3 Ph, 230V/460V prewired 230V or
2 HP, 1 Ph, 230V
Shipping Weight (lbs): 764 764



1/2 OFF MAIL-IN REBATE!
On our PM1300 Dust Collector Models when you buy
select  Powermatic products


Bag Filter
1791077BK-SP


PM1300 with Bag Filter


Canister
1791077CK-SP

2 Rebate Options Available
Click prices for rebate form!

P
PM1300 with Canister



WMH1791077BK-SP
$668.98 $500.00
$250 MAIL IN REBATE OFFER! - (Must be purchased with select WMH products to qualify!) "PM1300, DC, 1.75HP 1 Ph, 115/230V (Prewired 115V) with Bag Filter (WEIGHT = 150 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)" (Click Here For Rebate Form)


WMH1791077CK-SP
$842.51 $650.00
$325 MAIL IN REBATE OFFER! - (Must be purchased with select WMH products to qualify!) "PM1300, DC, 1.75HP 1 Ph, 115/230V (Prewired 115V) with Canister (WEIGHT = 160 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)" (Click Here For Rebate Form)


WMH1610079
$2,399.00 $2,116.00
"PJ-882 8"" Parallelogram Jointer 2HP,1Ph +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMH1610080
$2,399.00 $2,116.00
"PJ-882 8"" Parallelogram Jointer 3HP,3Ph +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMH1610082
$2,842.00 $2,599.99
" (( Want a Better Price Call 800-458-3687 Today )) PJ-882HH, 8"" Parallelogram Jointer, 2HP 1Ph 230V, with Helical Cutterhead +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMH1610083
$2,842.00 $2,599.99
" (( Want a Better Price Call 800-458-3687 Today )) PJ-882HH, 8"" Parallelogram Jointer, 3HP 3Ph 230/460V (Prewired 230V) with Helical Cutterhead +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""

WMH6296046
$90.00 $76.01
"Knives (Set of 3) for Models 60A, 60B, PJ882 +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States"


WMH1610078
$310.00 $229.35
Mobile Base for PJ882 Jointer +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH708801DX
$88.00 $76.01
"J6-KQC Quick Set 6"" Jointer Knife (PJ) +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States"
