Hydraulic Repair Kit
Porta-Power Kit

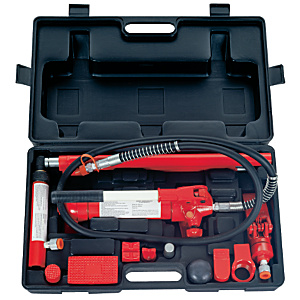

Stock # 680014

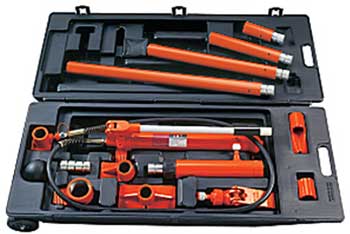

Stock # 680010 |
Features:
- Let hydraulic power make light work of body or collision
repairs
- Straighten, bend, press or spread steel with 4 ton or 10
ton capacity models
- Quick connect design allows assembly in seconds
- Automatic safety overload system protects equipment
- Heavy wall extension tubes for tough jobs
- Rugged blow molded case keeps tools organized
- Proof tested and certified to meet ANSI/ASME B30.1
standards
|
SPECIFICATIONS |
|
Stock Number |
680014 |
680110 |
|
Height |
7.4 inch |
8 inch |
|
Length |
23.4 inch |
39.5 inch |
|
Max Cylinder Pressure |
9000 PSI |
9000 PSI |
|
Max Handle Effort (lbs) |
132 |
132 |
|
Min/Max Height (in) |
11/16 |
15/21 |
|
Model Number |
BRK-4A |
BRK-10A |
|
Net Weight |
45.45 pound |
88 pound |
|
Oil Capacity (cu./in) |
20 |
35 |
|
Overall Stroke (in) |
5 |
6 |
|
Part Number |
680004 |
680010 |
|
Piston Stroke (in.) |
3/4 |
3/4 |
|
Pump Capacity (ton) |
4 |
10 |
|
Pump Piston Diameter (in) |
1/2 |
1/2 and 1 |
|
Serrated Saddle (cu/in) |
1-3/8 |
2 |
|
Ship Weight |
45.45 pound |
88 pound |
|
Width |
15 inch |
18 inch |
|
