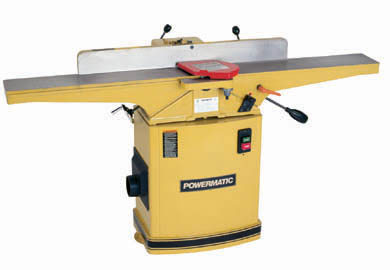

Powermatic 54A - 6" Jointer

6" Jointer

  • Features Powermatic's controlled chip cutterhead

  • Oversized, 66" long adjustable infeed and outfeed table (mounted on dovetailed ways)

  • Model 54HH includes a helical cutterhead with four-sided knife inserts that provides smoother, quierter cutting and finer finish than conventional systems

  • 38" extra-long fence

  • New fine/quick adjustment lever on infeed table for precision cuts

  • Enlarged sheet metal stand

  • Positive fence stops

  • Powerful 1 HP (TEFC) motor

  • Spring loaded front guard and fixed rear guard

  • 4" dust collection port

  • Two way tilting fence with positive stops at 45 degrees and 90 degrees

  • Conveniently mounted center fence controls

  • Rabbeting ledge is built into the tables

Specifications
Stock Number: 1791279DXK 1791317K
Model: 54A 55HH
Cutting Capacity (WxD/in): 6 x 1/2 6 x 1/2
Cutterhead Speed (RPM): 6000 6000
Number of Knives: 3 40 four-sided knife inserts
Rabbeting Capacity (in): 1/2 1/2
Table Surface (WxL/in): 7-1/4 x 66 7-1/4 x 66
Fence (HxL/in): 4 x 38 4 x 38
Blade Size (LxWxT/in): 6-1/16 x 5/8 x 1/8 6-1/16 x 5/8 x 1/8
Fence Tilts: 45 degrees L, 45 degrees R 45 degrees L, 45 degrees R
Positive Stops: -45 degrees, 90 degrees, 45 degrees -45 degrees, 90 degrees, 45 degrees
Motor (TEFC): 1 HP, 1 Ph, 115/230V
Prewired 115V
1 HP, 1 Ph, 115/230V
Prewired 115V
Shipping Weight (lbs): 332 332

Standard Equipment

  • Motor
  • Set of 3 high speed heat treated steel knives
  • Two material push blocks
  • Dust collection port
  • Cutterhead guard
  • Push button switch

Optional Accessories

  • 2042374 Mobile Base

  • 2230035 Knife setting gauge

  • 6285917 Push Block

  • 6285860 Knives, set of 3

  • 708801 6" Knives, set of 3

1/2 OFF MAIL-IN REBATE!
On our PM1300 Dust Collector Models when you buy
select  Powermatic products


Bag Filter
1791077BK-SP


PM1300 with Bag Filter


Canister
1791077CK-SP

2 Rebate Options Available
Click prices for rebate form!

P
PM1300 with Canister


Additional Documentation
Woodworking Catalog Page
Adobe Acrobat Required to read these files.


WMH1791077BK-SP
$668.98 $500.00
$250 MAIL IN REBATE OFFER! - (Must be purchased with select WMH products to qualify!) "PM1300, DC, 1.75HP 1 Ph, 115/230V (Prewired 115V) with Bag Filter (WEIGHT = 150 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)" (Click Here For Rebate Form)


WMH1791077CK-SP
$842.51 $650.00
$325 MAIL IN REBATE OFFER! - (Must be purchased with select WMH products to qualify!) "PM1300, DC, 1.75HP 1 Ph, 115/230V (Prewired 115V) with Canister (WEIGHT = 160 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)" (Click Here For Rebate Form)

54A-PMsm_c.gif WMH1791279DXK
$1,149.00 $939.95
"54A PM 6"" Jointer Kit, 1HP, QC Knives (WEIGHT = 332 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"


WMH1791317K
$1,386.00 $1,252.00
"54HH 6"" Jointer, 1HP 1Ph 115/230V, with Helical Cutterhead (WEIGHT = 332 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"

2042335_sm.jpg WMH2042374
$220.00 $181.70
Mobile Base for 54A Jointer (WEIGHT = 17 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order.

WMH708801DX
$88.00 $66.00
"J6-KQC Quick Set 6"" Jointer Knife (PJ) (WEIGHT = 0.66 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "


WMH2365013DX
$969.00 $906.40
"54A PM 6"" Jointer Kit, 1HP, QS Knives (WEIGHT = 254 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"
