Jet Precision Manual Surface Grinder


Features

  • Base, saddle, table and column feature high quality cast iron

  • Table action by cogged timing belt system

  • Table travels on precision roller balls

  • Double V roller tracks are over 19 inches apart

  • Roller tracks are Turcite-B coated for long life

  • Over 300 pound capacity on table

  • Motor is dynamically balanced allowing spindle run-out within 0.0008"

  • 24 volt controls feature overload protection

  • Automatic continous lubrication of table ways

  • Adjustable longitudinal table stops and cross feed lock are featured

  • Cabinet stand allows tool storage area

Standard Equipment

  • Complete coolant system

  • Balancing arbor

  • Halogen work lamp

  • Grinding wheel

  • Wheel flange

  • Diamond wheel dresser

  • Leveling blocks

  • Wheel extracting screw

  • Tool box with tools



Optional Accessories

  • Magnetic chuck (414533 and 414534)

  • Overhead diamond wheel dresser ( 414540)

  • Rotary phase converter (577302)

Additional Documentation
Metalworking Catalog Page
Adobe Acrobat Required to read these files.
Specifications
Stock No. 414519
Model JPSG-618M
Table Size (in): 6 x 18
Grinding Capacity (W x L/in): 7 x 19
T-Slots, (Number) Size (in): (1) 9/16
Max. Longitudinal Manual Table Travel (in): 20
Max. Cross Manual Table Travel (in): 7-3/4
Cross Handwheel Graduation (in): 0.0005
Cross Handwheel per Revolution (in): 0.02
Max. Spindle Centerline to Table (in): 18
Vertical Handwheel Graduation (in): 0.0001
Vertical per Handwheel Revolution (in): 0.05
Spindle Speed (RPM): 3,450
Motor 2HP, 230/460V, 3 Ph Prewired 230V
Maximum Wheel Diamter (in): 8
Max. Wheel Thickness (in): 3/4
Wheel Center Bore (in): 1-1/4
Floor Space Required (L x W x H/in): 74 x 45 x 68
Net Weight (lbs): 1,585



Model Stock No Surface Dim(in) Pole Size(in) Overall Dim (LxWxH /in)
JMC-612 414533 6 x 12 15/32 12-5/8 x 6-1/4 x 2-3/4
JMC-618 414534 6 x 18 15/32 8-1/2 x 6-1/4 x 2-3/

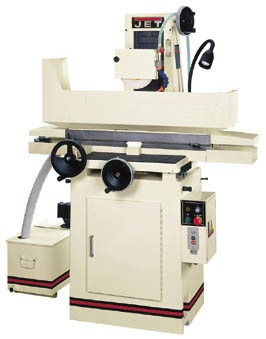

JPSG-618M.jpg WMH414519
$9,399.00 $8,507.01
"JPSG-618M1 Manual Surface Grinder *** FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC051009)"

JMC-618.jpg WMH414533
$549.86 $439.89
" (( Limited Quantity Special - Call For Availability )) JMC-612 6""X12"" MAGNETIC CHUCK >>> Free Ground UPS on this item Anywhere within the Lower 48 States (PC070709)"

WMH414540
$647.51 $448.44
"JWD-618M, Overhead Wheel Dresser for 414518 ==>> FREE GROUND UPS On This Item To Any Location Within The Upper 48 States (PC1109)"
