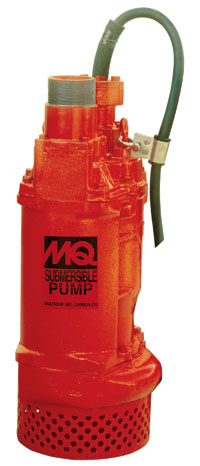

ST-4125D
This 3-inch pump is ideal for removing water from confined areas and it
provides numerous advantages over engine-driven trash pumps
- Maximum flow of 464
gallons (1,756 liters) per minute
- Driven by a
10-horsepower 3-phase motor
- Optional float
switches and control boxes for maximum performance
- Cast iron ductile
impeller
- Weighs 330 pounds
(150 kilograms)
Performance Data
Maximum Head - FT. (Meters): 125 (38)
Maximum Capacity - gpm (lpm): 464 (1,756) |
Power Source
Starting Amps: 149 (230V); 75 (460V)
Running Amps: 27 (230V); 14 (460V)
*Voltage, Phase: 230V/460V, 3 |
Dimensions
Overall Height - in. (cm): 32.7 (83.1)
Overall Width - in. (cm): 14.2 (36.0)
Operating Weight lbs. (kg): 330 (150)
Cable Length ft. (m): 50 (15.2)
|
Accessories
HD 450 : 4-inch 50' PVC Disch. Hose;
NPT fittings
HDQ 450 : 4-inch 50' PVC Disch. Hose; NPT Quick Disconnect
CB-12: Control Box for ST4102 (add 2ea. SW1WOP)
SW1WOP: Single Float Switches for ST4102 (requires 2 ea.)
|
| *PLEASE SPECIFY VOLTAGE |
|
|
|
|
