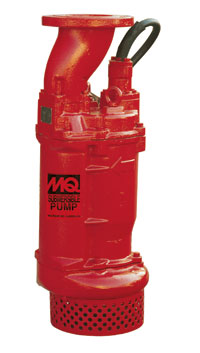

ST-6125D
In addition to benefits designed for every application, Multiquip's submersible
pumps are also extremely quiet and because they are electric-powered they can
run for hours unattended.
- Multiquip's highest
capacity sub pump -- 610 gallons (2,309 liters) a minute
- Maximum head of 125
feet (38 meters)
- 15-horsepower
3-phase motor
- Stainless steel
hardware resists corrosion
- Disc size of 6
inches (15 centimeters)
Performance Data
Maximum Head - FT. (Meters): 125 (38)
Maximum Capacity - gpm (lpm): 610 (2309)
|
Power Source
Starting Amps: 215 (230V); 108 (460V)
Running Amps: 39 (230V); 19.7 (460V)
*Voltage, Phase: 230V/460V, 3
|
Dimensions
Overall Height - in. (cm): 38.8 (98.6)
Overall Width - in. (cm): 14.2 (36.0)
Operating Weight lbs. (kg): 390 (177)
Cable Length ft. (m): 50 (15.2)
|
Accessories
HD 650: 6-inch 50' PVC Disch. Hose; NPT
fittings
HDQ 650 : 6-inch 50' PVC Disch. Hose; NPT Quick Disconnect
CB-12: Control Box for ST6152 (add 2ea. SW1WOP)
SW1WOP: Single Float Switch for CB12 (2 ea. required)
|
| *PLEASE SPECIFY VOLTAGE! |
|
|
|
|
