RAMS-2428 24 to 28 Ga. Pittsburgh Machin







s-h alt

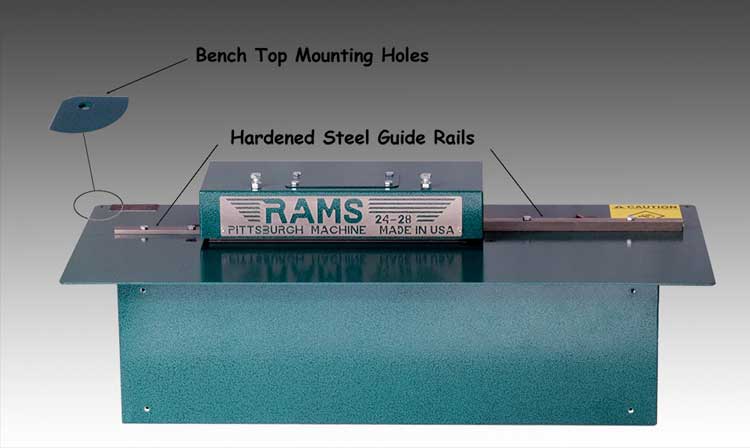

RAMS 24-28 Pittsburgh Machine
s-h alt
The unit comes with a 1/2 H.P. electric motor, 115/208-230V, 5.4 AMPS 60 cycle single phase. We use Torrington Needle Bearings and hardened steel components throughout (62 Rockwell). The cabinet and optional stand is heavy gauge steel with a Hammertone Green Finish.

Maintance & OperatingInstructions
Parts Diagram

s-h alt

Specifications
Model RAMS-2428
Capacity 24-28 Ga. Mild Steel
Approx. Speed 35 Fpm
Dimensions 32" Long X 16 - 3/4" Wide x 9" High
Approx. Weight 110 Lbs
The unit comes with a 1/2 H.P. electric motor, 115/208-230V, 5.4 AMPS 60 cycle single phase. We use Torrington Needle Bearings and hardened steel components throughout (62 Rockwell). The cabinet and optional stand is heavy gauge steel with a Hammertone Green Finish.



Download Additional Information

Marketing Flyer
Maintance & Operating Instructions


s-h alt

Specifications
Model RAMS-2003
Capacity 24 - 26 Ga. Min. Mild Steel
Dimensions 16" Long X 9 1/4" Wide x 6 1/4" High
Approx. Weight 30 Lbs

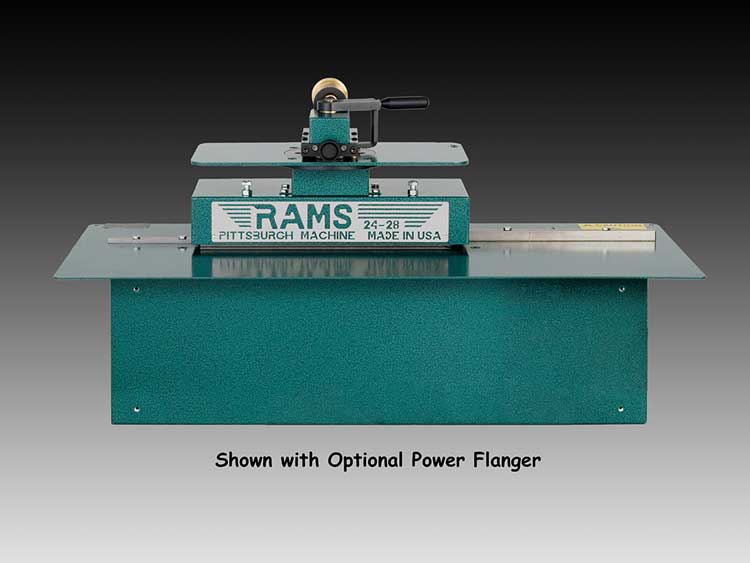

The unit can be mounted to the RAMS 24-28 Pittsburgh Machine. The RAMS-2003 Power Flanger will form a 7/32" right angle flange on either straight or curved pieces. It has an adjustable "auto-guide", which can be set to automatically hold the metal for turning the flange on both, a radius or a straight piece. This unit features Torrington needle bearings and hardened and ground shafts.



Download the Flyer

Maintance & OperatingInstructions
Parts Diagram

s-h alt

Rams 24-48 Pittsburg Machine Accessories
-2428-AUX-A 2428-Acme/Dble. Seam Rolls
-2428-AUX-D 2428-Drive Cleat Rolls
-2428-AUX-R 2428-Right Angle Rolls
-2003 24GA POWER FLANGER

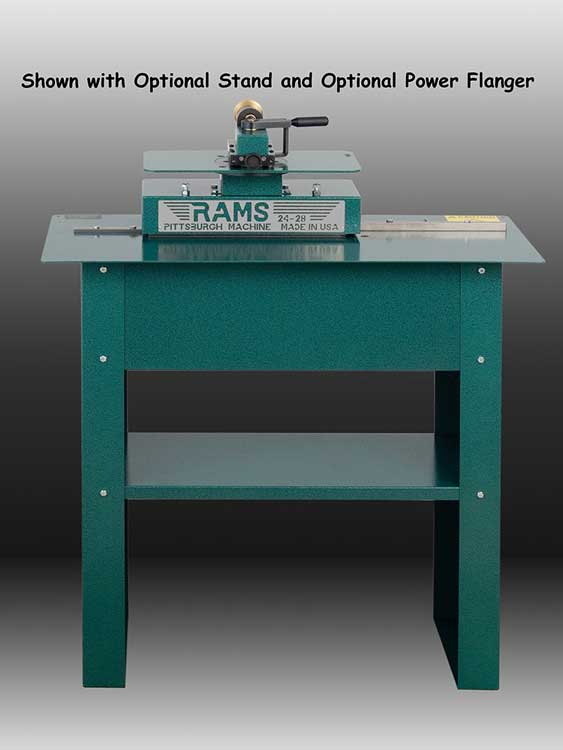

-2428-S Pittsburgh Stand



S-2428
24GA PITTSBURGH ** SHIP WEIGHT 180 LBS, SHIP VIA LTL FREIGHT TRUCK (42 X 18 X 20)
CALL 800-458-3687 X1 OR ADD TO CART FOR YOUR BROTHER-IN-LAW DEAL ON THIS RAMS ITEM
Mfg. item #: S-2428
RAMS-2428
lease to own for as little as:$66 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,284.12

342
S-2003
24GA POWER FLANGER ATTCHMNT-BASE MODEL** SHIP WEIGHT 30 LBS, SHIP VIA UPS(30 X 14 X 10)
CALL 800-458-3687 X1 OR ADD TO CART FOR YOUR BROTHER-IN-LAW DEAL ON THIS RAMS ITEM
Mfg. item #: S-2003
RAMS-2003
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,177.27

342
S-2428-AUX-A
2428-ACME/DBLE. SEAM ROLLS** SHIP WEIGHT 17 LBS, SHIP VIA UPS(14 X 4 X 6)
CALL 800-458-3687 X1 OR ADD TO CART FOR YOUR BROTHER-IN-LAW DEAL ON THIS RAMS ITEM
Mfg. item #: S-2428-AUX-A
RAMS-2428-AUX-A
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$653.86

342
S-2428-AUX-D
2428-DRIVE CLEAT ROLLS** SHIP WEIGHT 22 LBS, SHIP VIA UPS(14 X 4 X 6)
CALL 800-458-3687 X1 OR ADD TO CART FOR YOUR BROTHER-IN-LAW DEAL ON THIS RAMS ITEM
Mfg. item #: S-2428-AUX-D
RAMS-2428-AUX-D
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$653.86

342
S-2428-AUX-R
2428-RIGHT ANGLE ROLLS** SHIP WEIGHT 17 LBS, SHIP VIA UPS(14 X 4 X 6)
CALL 800-458-3687 X1 OR ADD TO CART FOR YOUR BROTHER-IN-LAW DEAL ON THIS RAMS ITEM
Mfg. item #: S-2428-AUX-R
RAMS-2428-AUX-R
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$653.86

342
S-2428-S
PITTSBURGH STAND** SHIP WEIGHT 31 LBS, SHIP VIA UPS(3 X 13 X 35)
CALL 800-458-3687 X1 OR ADD TO CART FOR YOUR BROTHER-IN-LAW DEAL ON THIS RAMS ITEM
Mfg. item #: S-2428-S
RAMS-2428-S
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$343.39

342
