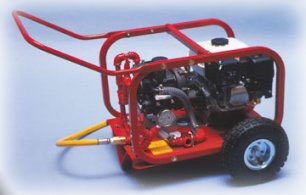

The Diaphragm series hydrostatic test pumps are large volume, medium
pressure test pumps, with flow rates up to 56 GPM, and pressures ranging to
600 PSI, designed to test large diameter water lines up to 96". Exclusive to
the Rice Hydro DP-3 hydrostatic test pump, is a triple diaphragm pump with "DURAphragm
technology", where pressure is spread throughout the entire face of the
diaphragm, virtually eliminating torn, damaged diaphragms caused by pressure
feeding. The continuous inner oil bath movement ensures high efficiency, long
life and increased durability. All test pumps are enclosed in a rugged roll
cage made of heavy gauge welded steel. Accessories available are wheel and
handle kits for increased mobility, and mountable tanks that enable you to
pressure feed the diaphragm series, and can be added to your testpump at any
time. Hydrostatic test pumps can be "built to suit", please contact the
factory for details.
Exceptional Features Included
-
Pressures up to 600 PSI,
Flow rates up to 56 GPM
-
Handles up to a 10% Chlorine Solution and can be
Run Dry
-
Triple Diaphragm Design, with Inner Oil Bath
Ensures Long Life
-
Wheel & Handle Kits and Pressure Feed Tanks
Available
-
Hydrostatic Test Pumps can be "Built to Suit"
- DPH-8 32 GPM at 300 PSI
- 9 HP Honda or Briggs & Stratton
- Inlet Hose with Strainer
- High Pressure Outlet
- Triple Diaphragm
- Handles up to a 10% Chlorine Solution
- Can be Run Dry
Specifications for The DP-3
- 11 GPM
- 550 PSI
- Inlet Hose with Strainer
- High Pressure Outlet
- Hose with QC Couplings
- 5.5 HP Honda or
- Briggs & Stratton
- Triple Diaphragm Pump
Other Models Available:
DP-4 (22 GPM at 280 PSI) & DP-6 (19 GPM at 600 PSI)
DPH-56/250 (56 GPM at 250 PSI)
|
