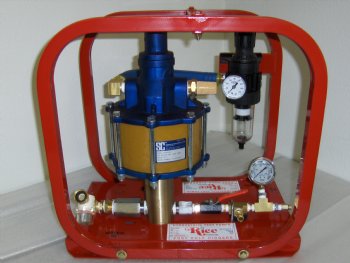

The HP-Series of pneumatic hydrostatic test pumps are compact, versatile,
air driven units, designed for testing environments where dangers of spark or
explosion are prevalent. Lightweight and portable, these high pressure units are
ideal for tight spots, remote locations, or anywhere standard shop air is easily
accessible. The pneumatic series utilizes a reciprocating air driven plunger
assembly. Designed for maximum performance and to withstand the test of time,
these easy to use pumps are made with premium high pressure fittings and
components, and are protected in a steel roll cage. The stainless steel
liquid-filled gauge ensures accurate readings with less flutter.
For higher return on investment with rental and resale value, a Low
Pressure Kit is available. By adding this modification, pressure range can be
increased on RICE pneumatic test pumps, up to four times the existing pressure
range; using fewer units to meet multiple job requirements. As with all RICE
Hydro products, the HP Series hydrostatic test pumps can be "built to suit",
please contact the factory for details.
The HP Series, Airing the Facts…
-
Special Order Options Available
-
Pressures Ranging from 70 PSI to 15,000 PSI
-
8 Different High Quality Models to Choose From
-
Low Pressure Kit, Increases Existing Range of
Pressure up to Four Times
-
High Pressure Needle Valve Quickly Bleeds Off Air
and Releases Pressure
Specifications for HP Series
- Pressure Ranges from 70-15,000 PSI with Low Press Kit
- Pre-Lubricated Air Drive
- High Pressure Outlet Hose
- Runs off of Standard Shop Air 100 PSI, 75 CFM
- Reciprocating Air Driven Plunger Pump
Available
Models:
| MODEL |
PSI MAX.
|
FLOW (cu. in.)
|
LOW PRESS KIT
|
| HP-23 |
2,300
|
.6
|
105
|
| HP-32 |
3,200
|
.43
|
150
|
| HP-100 |
10,000
|
.13
|
500
|
| HP-150 |
15,000
|
.09
|
800
|
|
