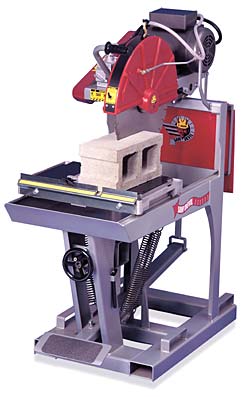

MS2 Block Saw The "Smart Li'l Devil" - MS2 is the Professional Choice.
The MS2 is extra rugged and heavy-duty, ideal for stationary production
work of virtually all masonry materials.
- Cuts blocks to an 8" depth (up to 20" blade capacity).
- Three-way blade positioning system -- foot pedal, heavy-duty hand
crank, or blade lever -- meets any operator need.
- Convenient hands-free operation for raising and lowering blade
with spring-loaded foot pedal.
- Reinforced tri-leg base with bi-directional, heavy-duty forklift
brackets.
- Stationary gas engine mounting does not tilt with blade.
- Electric water pump standard on electric MS2 models. Belt-driven
water pump standard on gas MS2 models.
- Blade wrench to change blades or remove cutting head standard.
|
Block Saws Features in Detail
The Stone Saw Devil line of masonry block saws blaze
through blocks, bricks, paving stones and more.
These "Little Devils" are solid, durable and
operator friendly.
Stone Saw Devil Masonry Block Saws' all-steel frames, sealed
bearings and
stationary engine platforms stand up to the most complicated
block cutting:
- Cast aluminum cutting carts with no-slip rubber tops
prevent blocks from moving during cutting.
- Open-back design allows rip cutting the entire length
of larger blocks.
- 45° / 90° miter guide for precision cutting.
- Easy-to-clean polyethylene blade guard provides 210°
of blade coverage.
- Stay-level blade guards with full blade clamp coverage
keeps guard parallel to the cutting surface.
- Two-bolt quick-release mount makes disassembling
cutting head from frame easy.
- Blade wrench to change blades or remove cutting head
standard.
- OSHA compliant electric motors and pumps match
voltage.
- Blade wrench to change blades or remove cutting head
standard.
|
|
Specifications: |
| Model |
MS2 |
| Weight (lbs) |
445
lbs. (216) |
| LxWxH (cm) |
48" x 25" x 71"
(122 x 64 x 180)
62.5" high on electric models |
| Blade Capacity (cm) |
14", 20" (35,6 / 50,8) (20" standard) |
| Cut Depth (cm) |
5" w/ 14" blade
(12,7)
8" w/20" blade (20,3) |
| Table Height (cm) |
35"
(89) |
| Engine Options (kW) |
3 hp Baldor (2,3)
5 hp Baldor (3,8) 230v only
7.5 hp Robin (5,6)
8 hp Honda Cyclone (5,9)
11 hp Honda Cyclone (8,2) |
