| Model
Number |
SD66 |
PD66 |
PDB66 |
| Drum
Type |
Smooth |
Padfoot |
Padfoot
w/ Blade |
| Dimensions |
| Operating
Weight lbs (kg) |
18,500
(8409) |
19,600
(8909) |
22,000
(10000) |
| L
x W x H (cm) |
194"
x 73" x 112" (492.8 x 185.4 x 284.5) |
| Drum
Width (cm) |
66"
(167.4) |
| Operating
System |
| Engine
(kw) |
108
hp water-cooled Perkins (80.5) |
| Drive
System |
Hydrostatic
drive with ZF no spin differential axle |
Performance
Centrifugal Force |
| High
lbs (kN) |
25,741
(114.5) |
28,249
(125.65) |
28,249
(125.65) |
| Low
lbs (kN) |
22,978
(102.2) |
25,243
(112.3) |
25,243
(112.3) |
| Amplitude
High (mm) |
.055"
- .065" (1.4 - 1.7) |
| Amplitude
Low (mm) |
.030"
- .040" (.8 - 1) |
| Gradeability |
65% |
|

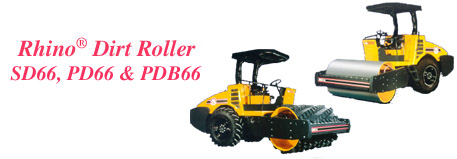

Features
 The
Stone Rhino 66'' is 10 tons of pure power in a great size for virtually
any kind of site
Available
in two drum configurations: Smooth and Padfoot
Can
also purchase a Padfoot Drum Conversion Kit for the Smooth Drum Rhino 66
It
can be purchased separately or factory installed for a nominal charge. |
|
