Stow Floor Grinders



On all STOW Grinders!

Stow DFG Series Floor Grinders are your best choice for the removal of dirt, grease, rubber carpet backing, industrial residues, or epoxy coatings from a horizontal surface.
  • Twin counter-rotating discs provide a work area of 24" x 12".
  • Grind to within 1 1/2" of walls or obstructions.
  • Choose from Honda-powered gasoline model or electric-powered motor models available in 2-HP and 3-HP configurations (engines are dependent on environment).
  • Attachments make the surface grinder one of the most productive and practical machines available for use by surface preparation contractors, concrete repair contractors and industrial building maintenance specialists.
  • Comfortable operator handle. Full width, tubular design maximizes operator leverage and control. Helps maximize productivity and minimize fatigue.
  • Choice of power sources. 2 or 3 HP electric, domestic and foreign voltage operation. 11 HP Honda gasoline.
  • Carry handles. Comfortable and functional when loading or unloading.
  • Full-length rubber bumper. Minimizes damage to vertical walls. Quickly removed for installation of safety and dust shield.


Floor Preparation Equipment Brochure

ATTACHMENTS

Floor Scraper Coatings Removal System

  • Fits General and EDCO dual-headed surface grinders.
  • Removes urethanes, mastics, epoxies and material build-ups.
  • Twin insert design minimizes damage to cap surface.
  • Replaceable tungsten carbide inserts feature eight wear edges.
  • 12 inserts required per machine.
  • Available as a kit for extra savings.

Diam-A-Tach® Diamond Segment Grinding System

  • Fits General and EDCO dual-headed surface grinders.
  • Increases productivity over grinding stones.
  • Removes thin film surface coatings without clogging.
  • Matrix options for material types and abrasion levels.
  • Offset mounting extends segment service life.
  • Replaceable diamond segment pins.
  • 6 inserts of 3 segments required per machine.

TC-GB Tungsten Carbide Grinding Block

  • Fits General and EDCO dual-headed surface grinders.
  • Tungsten carbide balls deposited in softer weld matrix.
  • Longer productivity and service life than grinding stones.
  • 6 inserts required per machine.

Grinding Stones

  • Fits General and EDCO dual-headed surface grinders.
  • Sharp edges of silicon carbide are exposed with use for aggressive grinding action.
  • Available in super-coarse C06 to polishing C120.
  • 6 stones required per machine.

Scarifier Blocks

  • Fits General and EDCO dual-headed surface grinders.
  • Utilizes heat-treated, high carbon flails mounted in reusable steel frames.
  • Breaks up hard surface deposits such as varnish, paint, epoxy fiberglass and grout.
  • Chips concrete from around aggregate.
  • 6 frames required per machine.

Wire Brushes

  • Fits General and EDCO dual-headed surface grinders.
  • Breaks up soft to medium deposits of grease, dirt, rubber carpet backing and industrial residues from floor surfaces.
  • Produces exposed aggregate slabs.
  • Removes slow setting concrete without disturbing aggregate.
  • 6 brush blocks required per machine.

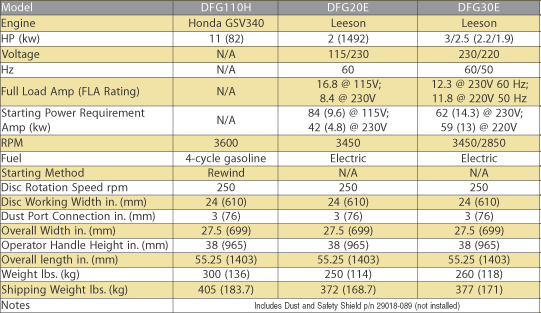

SPECIFICATIONS



grinder-e_sm.gif MULDFG110H
$4,910.00 $4,028.56
"Dual Head Surface Grinder, Dual 10"" Discs,11 HP Honda GXV340 w/ Dual Air Filter System, 227 rpm; includes safety and dustshield kit. -->>>> FREE TRUCK SHIPPING to any commercial address. **NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! "

MULDFG20E
$4,290.00 $3,519.86
"Dual Head Surface Grinder, Dual 10"" Discs, 2 HP 1-phase, 115/230V, 60Hz, 227 rpm; includes safety and dustshield kit. -->>>> FREE TRUCK SHIPPING to any commercial address. **NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! "

MULDFG30E
$4,490.00 $3,683.96
"Dual Head Surface Grinder, Dual 10"" Discs, 3 HP 230V 60 Hz elec., 227 rpm; includes safety and dustshield kit. -->>>> FREE TRUCK SHIPPING to any commercial address. **NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! "

MULGS-C06
$7.20 $5.91
"Surface Grinder Accessories Surface Grinding Stones Grinding Stone C 06 extra coarse, inc. Mounting wedge 29019-017 - requires 6 / machine -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULGS-C10
$7.20 $5.91
"Surface Grinder Accessories Surface Grinding Stones Grinding Stone C 10 coarse, inc. Mounting wedge 29019-017 - requires 6 / machine -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULGS-C24
$7.20 $5.91
"Surface Grinder Accessories Surface Grinding Stones Grinding Stone C 24 medium, inc. Mounting wedge 29019-017 - requires 6 / machine -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULGS-C80
$7.20 $5.91
"Surface Grinder Accessories Surface Grinding Stones Grinding Stone C 80 fine, inc. Mounting wedge 29019-017 - requires 6 / machine -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULGS-C120
$7.20 $5.91
"Surface Grinder Accessories Surface Grinding Stones Grinding Stone C 120 super fine, incl. Mounting wedge 29019-017 - requires 6 / machine -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULTC-GBKIT
$440.00 $360.45
"Tungsten Carbide Surface Grinding Blocks System kit, incl. 6 ea. TC-GB blocks, 6 ea.p/n 29019-017 mounting wedge, installation hammer, removal tool and tool box, 20lbs ****FREE FREIGHT Shipping On This Item ONLY When Purchase With Unit! Otherwise SEE the UPS Chart at Checkout

MULTC-GB
$60.00 $49.15
"Tungsten Carbide Surface Grinding Blocks, with plastic mounting wedge - requires 6 per machine, 2lbs. ****FREE FREIGHT Shipping On This Item ONLY When Purchase With Unit! Otherwise SEE the UPS Chart at Checkout

MUL29019-016
$14.50 $11.90
"Surface Grinder Accessories Wire Brush / Clean Sweep Floor Brushes Wire Brush Assembly; .025 flat wire x .059 fill; 4 rows, 2""x4 "" hardwood block, incl. plastic mounting wedge p/n 29019-017. Requires 6 units per machine -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MUL29019-021
$280.00 $229.73
"Surface Grinder Accessories Wire Brush / Clean Sweep Floor Brushes Clean Sweep Rotary Brush, 11"" OD w/silicon carb impregnated bristels; inc. mounting hardware. Req 2/machine. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULSTARKIT
$46.50 $38.15
"Surface Grinder Accessories Scarifier Blocks & Accessories STAR Scarifier Block Assembly, steel case, 12 ea. 29019-010 star type flails, hardware & plastic mounting wedge p/n 29019-017, 6 units required per machine. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULBEAMKIT
$46.50 $38.15
"Surface Grinder Accessories Scarifier Blocks & Accessories BEAM Scarifier Block Assembly, steel case, 12 ea. 29019-011 beam type flails, hardware & plastic mounting p/n 29019-017wedge, 6 units required per machine. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULPENTAGONALKIT
$130.00 $106.66
"Surface Grinder Accessories Scarifier Blocks & Accessories PENTAGONAL Scarifier Block Assembly, steel case, 8 ea. 29019-012 pentagonal type flails, hardware & plastic mounting wedge p/n 29019-017, 6 units required per machine. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MUL29019-011
$1.10 $0.90
"Surface Planer Accessories & Individual Flails Beam Flails, 1 3/4"" OD x 5/8"" ID x 1/8"" wide, heat treaded high carbon, 12 teeth flat tips. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MUL29019-012
$12.50 $10.26
"Surface Planer Accessories & Individual Flails Pentagonal Flail; 1 3/4"" OD x 5/8"" ID x 1/4"" wide, 5 teeth with tungsten carbide inserts. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MUL29019-013
$0.35 $0.28
"Surface Grinder Accessories Scarifier Blocks & Accessories Spacer Washer 1 5/6"" OD x 45/64"" ID x 1/8 wide. Use with all flails -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MUL29019-017
$1.00 $0.82
"Surface Grinder Accessories Scarifier Blocks & Accessories Plas-T-Lok (TM) Mounting wedge; high density plastic; requires 6 wedges per machine. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULDIAMKIT-B
$1,330.00 $1,091.24
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems DIAM-A-TACH ½ kit, Black, 6 DIMATACH-B 6 wedges; 6 pins; 6 O-rings; hammer, punch; tool box. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULDIAMKIT-G
$1,330.00 $1,091.24
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems DIAM-A-TACH ½ kit, Green, 6 DIMATACH-G 6 wedges; 6 pins; 6 O-rings; hammer, punch; tool box. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULDIAMKIT-P
$1,330.00 $1,091.24
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems DIAM-A-TACH ½ kit, PURPLE, inc. 6 DIMATACH-P, 6 wedges; 6 pins; 6 O-rings; hammer; drive punch; tool box. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULDIAMKIT-R
$1,330.00 $1,091.24
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems DIAM-A-TACH kit, RED, 6 DIMATACH-R 6 wedges; 6 pins; 6 O-rings; hammer, punch; tool box. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULDIAMKIT-Y
$1,330.00 $1,091.24
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems DIAM-A-TACH ½ kit, Yellow, inc. 6 DIMATACH-Y 6 wedges; 6 pins; 6 O-rings; hammer, drive punch, tool box. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULDIAMTACH-B
$210.00 $172.30
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems DIAM-A-TACH ½ Black 40-50 grit; stamped ""B"" on pin shank, incl. plastic wedge 29019-017 6 / machine. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULDIAMTACH-G
$210.00 $172.30
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems DIAM-A-TACH ½ Green 40-50 grit; stamped ""G"" on pin shank, incl. plastic wedge 29019-017; 6 / machine. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULDIAMTACH-P
$210.00 $172.30
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems DIAM-A-TACH ½ Purple, 40-50 grit; stamped ""P"" on pin shank, incl. plastic wedge 29019-017; 6 / machine. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULDIAMTACH-R
$210.00 $172.30
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems DIMA-A-TACH ½ Red; 40-50 grit; stamped ""R"" on pin shank, incl.plastic wedge 29019-017; 6 / machine. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULDIAMTACH-Y
$210.00 $172.30
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems DIAM-A-TACH ½ Yellow 40-50 grit; stamped ""Y"" on pin shank, incl. plastic wedge 29019-017; 6 / machine. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULG-SHANKKIT
$62.00 $50.87
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems Diamond segment/pin replacement,Green, stamped ""G"" on pin shank.Req 3 sgement/pins. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULB-SHANKKIT
$62.00 $50.87
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems Diamond segment/pin replacement, Black, stamped ""B"" pin shank DIMATACH-B. Req 3 segment/pins. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULR-SHANKKIT
$62.00 $50.87
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems Diamond segment/pin replacement, Red, stamped ""R"" on pin shank.Req 3 segment/pins. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULP-SHANKKIT
$62.00 $50.87
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems Diamond segment/pin replacement, Purple, stamped ""P"" on pin shank p/n DIMATACH-P. Req. 3 segment/pins. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULY-SHANKKIT
$62.00 $50.87
"Surface Grinder Accessories DIAM-A-TECH ~ Diamond Segment Surface Grinding Systems Diamond segment/pin replacement, Yellow, stamped ""Y"" on pin shank p/n DIMATACH-Y.Req 3 sgement/pins. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MUL29018-089
$210.00 $172.30
"Surface Grinder Accessories Safety Dust Shields Safety and Dust Shield assembly kit ~ Dual Head Grinders. -->>>> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"
