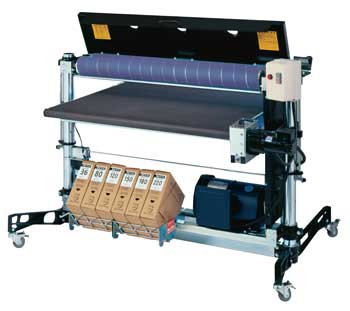

SuperMax 50 x 2 Drum Sander


Shown with optional accessories

 50 x 2 Drum Sander

  • Continuousduty 7-1/2HP motor, 208 - 230 Volt power, single or 3 phase

  • SandSmart™ automatic control of the infinite-variable feed rate of the conveyor (0-15 ft./min.)

  • Precisely dimension stock within .010” across width of sander

  • Magnetic starter

  • Multiple grit sanding in a single pass

  • 50” wide, dual (x 2) drum sanding capacity

  • Casters included, (wheel and swivel lock)

  • Electric height adjustment, high speed and adjustable speed

  • ProScale depth gauge (DRO) insures proper dimensioning

  • Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex”

  • Self-cooling drum with abrasive Take-up Fasteners, make changing abrasives quick and easy and keeps abrasives tight

  • Sand stock as short as 3-1/2” as thin as 1/32” and as thick as 12”

  • Cast stand zinc-plated steel bed, center less ground column tubes

  • Minimum of 1800 CFM dust collection recommended

  • Shipped assembled, some minimal assembly required

  • Drum ball bearings are sealed and permanently lubricated

PROSCALE™

  • Displays how much material is being removed per pass
  • Displays zero when the desired thickness is reached
  • Displays the actual thickness of the stock as it exits the sander
  • Standard on 220 Volt Series 50x2 drum sanders (Optional on all other models)
Sanding Capacity
Maximum Width (in): 50
Minimum Length (in): 3 1/2
Maximum Thickness (in): 12
Minimum Thickness (in): 1/32
Dimensions (H x W x D/in): 50 x 71 x 31
Extruded Aluminum Drums: 5 x 50 (2)
Drum Speed: 1600 RPM
Dust hood: Hinged back steel with 3 -4: vacuum ports
Height Adjustment (in): Power and manual controls, 2/32 per turn; ProScale™ digital read-out and locking stop included
Ball Bearings (1") 4
Conveyor Motor: SandSmart™ controlled 220 in. - lb. torque, direct drive D.C. motor, Infinitely variable 0-15 feet per minute
Drive Motor (TEFC): 7 1/2 HP, 1740 RPM; 208-230V, 60Hz; continuous-duty.
Power Requirements: 1 Ph, 50 amp service
3 Ph, 30 amp service
Shipping Weight (lbs): 820

220 Volt Models

  • 750102 - SuperMax 50x2 dual drum, 1 Ph

  • 750302 - SuperMax 50x2 dual drum, 3 Ph

Optional Accessories

  • 59120 - Abrasive Cleaning Stick

  • 61-1010 - 50" Poly Conveyor Belt

  • 61-1007 - 37" Poly Conveyor Belt

  • 98-0070 - Rack-N-Roll (Abrasive Storage Shelf)

  • "Pre-Marked" Abrasives - 24 to 220 grit


SMT750102
$11,500.00 $10,557.00
Drum Sanders - 50x2 Double Drum 220V- 1PH >>> Call 800 458-3687 Ext 1 - For Shipping Costs (PC010110)


SMT750302
$11,500.00 $10,557.00
Drum Sanders - 50x2 Double Drum 220V- 3PH >>> Call 800 458-3687 Ext 1 - For Shipping Costs (PC010110)


SMT60-0350
$230.00 $218.50
Abrasive Conveyor Belt 50 >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)


SMT60-8024
$255.00 $242.25
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 24 Grit: Klingspor Blue, Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-8036
$255.00 $242.25
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 36 Grit: Klingspor Blue, Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-8050
$255.00 $242.25
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 50 Grit: Klingspor Blue, Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-8060
$255.00 $242.25
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 60 Grit: Klingspor Blue, Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-8080
$255.00 $242.25
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 80 Grit: Klingspor Blue, Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-8120
$255.00 $242.25
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 120 Grit: Klingspor Blue, Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-9036
$145.00 $137.75
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 36 Grit: Premium Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-9060
$145.00 $137.75
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 60 Grit: Premium Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-9080
$145.00 $137.75
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 80 Grit: Premium Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-9100
$145.00 $137.75
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 100 Grit: Premium Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-9120
$145.00 $137.75
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 120 Grit: Premium Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-9150
$145.00 $137.75
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 150 Grit: Premium Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-9180
$145.00 $137.75
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 180 Grit: Premium Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT60-9220
$145.00 $137.75
"Pre-Marked Rolls Marked for All models of Performax, SuperMax, JET, & General (24/25"") Drum Sanders 220 Grit: Premium Pre-Marked Rolls >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT98-0118
$500.00 $466.65
ProScale¿ DRO (digital read out) Depth Gauge >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)


SMT98-0025
$250.00 $237.50
" Lowrider Legs* with 4 Casters (lowers machine 5-1/2"") >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)"


SMT98-0130
$99.00 $94.05
Caster Set - Box of (4) >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)


SMT98-0070
$38.00 $36.10
Rack'N Roll (Abrasive storage shelf) >> Free Freight ONLY when added to a Sander order OR See UPS Charges at Checkout (PC010110)
