Comfort
Cooler®
Features
-
1-speed or 2-speed motor
-
Sealed ball bearings for longer life
-
Standard wall switch with 2-speed fans
-
Comes with 1" x 4" wood frame, ready to
install
-
UL listed
-
Five blade sizes to choose from: 24", 30",
36", 42", 48"
-
Two shutter styles to choose from
[manual]
[brochure]
|

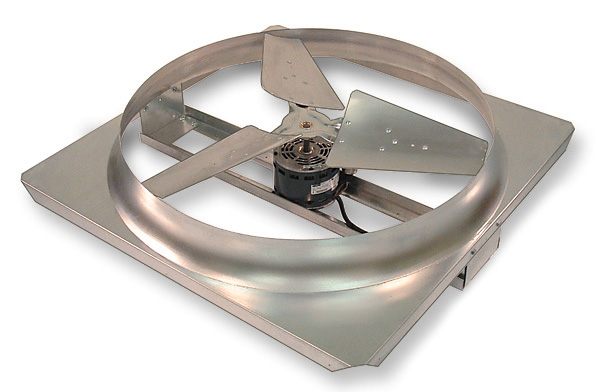

Comfort
Cooler®
Features
-
2-speed direct-drive motor
-
Sealed ball bearings for long life
-
Pull-chain operation or optional 2-speed wall
switch
-
No joist to cut
-
Standard CSS shutter included with fan
-
Easy installation
-
UL listed
-
Two blade sizes to choose from: 24" and 30"
[manual]
[brochure]
|
|
Each
Whole House fan comes
with a 10-Year Limited Warranty

Pushes
hot air out.

Draws cool air in.
|
Reduce home
cooling bills by up to 90% with the number 1
whole house fan in the world!
The
steady rise of cost for electricity means this fan will pay for itself
in savings over just a few years! Plus many power companies now offer a
rebate incentive (some up to $250). With a Whole House attic fan you
absolutely cannot lose!
If your house already has an
air-conditioning system, use your Whole House attic fan at temperatures
of 85° or below and the air conditioner at temperatures of 85°
or above, and you'll receive maximum comfort with greatly reduced
electricity bills. Savings of up to 90% savings are common. The
Whole House attic fan keeps you cool while saving you money. It really
is this simple and easy.
Service-free and quiet as a whisper,
these fans come with Triangle Engineering's unique
Automatic Belt Tensioning that extends motor life and eliminates the need
for manual belt adjustments
Also rids the home of odors,
and can achieve one complete air change per minute.
|
|
Whole House Fan
Specifications: |
|
Model |
Blade
Diam. |
HP |
Free Air
(C.F.M.)
Hi/Lo |
Blade
R.P.M.
Hi/Lo |
Shipping
Weight
LBS. |
Carton
Cu.Ft. |
Dimensions |
Cools
Sq. Ft.
Hi/Lo |
Min. Free
Exhaust
Area (Sq. Ft) |
|
A |
B |
C |
|
Comfort Cooler® |
|
CC 2422 |
24" |
1/3 |
3,700/2,500 |
560/370 |
57 |
9.69 |
30" |
4" |
15" |
up to 800 |
8 |
|
CC 3022 |
30" |
1/3 |
5,900/3,900 |
455/305 |
62 |
13.88 |
34" |
4" |
15" |
800/1,200 |
10 |
|
CC 3023 |
30" |
1/1 |
6,900/4,600 |
460/305 |
67 |
13.88 |
34" |
4" |
15" |
900/1,500 |
10 |
|
CC 3622 |
36" |
1/3 |
7,800/5,200 |
420/280 |
77 |
18.82 |
40" |
4" |
15" |
1,200/1,800 |
12 |
|
CC 3623 |
36" |
1/2 |
10,600/7,000 |
415/275 |
82 |
18.82 |
40" |
4" |
15" |
1,500/2,500 |
12 |
|
CC 4223 |
42" |
1/2 |
12,000/7,900 |
410/270 |
91 |
24.50 |
46" |
4" |
15" |
2,200/3,200 |
18 |
|
CC 4823 |
48" |
1/2 |
13,800/9,100 |
305/200 |
107 |
30.94 |
52" |
4" |
15" |
2,500/4,000 |
22 |
|
Comfort Cooler® |
|
CA 2421-S |
24" |
1/4 |
4,000/3,500 |
840/745 |
43 |
5.11 |
30" |
4" |
9" |
600/800 |
8 |
|
CA 3021-S |
30" |
1/4 |
5,900/4,700 |
815/650 |
46 |
6.54 |
34" |
4" |
9" |
800/1,000 |
10 |
| Specifications Subject to
Change Without Notice. |
Automatic
Shutters
Ceiling Shutters
For Whole House Fans |
Triangle's automatic ceiling shutters feature heavy-duty extruded
aluminum frames and louvers mounted on polyethylene bearings for smooth, silent
operation. The shutters are precision balanced for years of maintenance-free
service. The louvers open and close automatically when the fan is turned on and
off, keeping out air, insects and dust. The white enamel finish blends with any
decor and helps beautify your home.
|
|
 |
 |
| No-Cut-Joist Automatic Ceiling
Shutter |
|
MODEL |
Fan
Size |
Outside
Dimension |
Inside
Dimension |
Louver Panel
Opening Size |
Shipping
weight
(lbs.) |
Shipping
carton
(cu. ft.) |
| CSS24
|
24" |
24"x32" |
22"x30" |
10-1/4"x30-1/4" |
10 |
1.01 |
| CSS30
|
30" |
32"x35" |
30"x33" |
14-1/4"x34-1/4" |
8 |
1.45 |
| CSS36 |
36" |
32"x43" |
30"x40" |
14-1/4"x41-1/4" |
10 |
1.80 |
| CSS42* |
42" |
38"x49" |
35-1/2"x46-3/8" |
17-1/4"x46-3/4" |
15 |
2.84 |
| Specifications
Subject to Change Without Notice. |
| *For 24" o.c. joists only |
|
| Automatic Ceiling Shutter |
|
MODEL |
Fan
Size |
Outside
Dimension |
Inside
Dimension |
Shipping
weight
(lbs.) |
Shipping
carton
(cu. ft.) |
| AS10 |
24" |
26"x26" |
24"x24" |
6 |
1.25 |
| AS11 |
30" |
32"x32" |
30"x30" |
12 |
1.33 |
| AS13 |
30" |
32"x38" |
30"x36" |
13 |
1.63 |
| AS14 |
30" |
34"x36" |
32"x34" |
14 |
1.83 |
| AS15 |
36" |
35"x38" |
33"x36" |
9 |
2.18 |
| AS16 |
36" |
34"x45" |
32"x43" |
10 |
2.49 |
| AS18 |
42" |
36"x48" |
34"x46" |
22 |
3.39 |
| AS26 |
48" |
38"x58" |
36"x56" |
13 |
3.5 |
| Specifications Subject to
Change Without Notice. |
|
Flat
Shipping Rate on Fans Only or Fans with Shutters is $99.00
|
