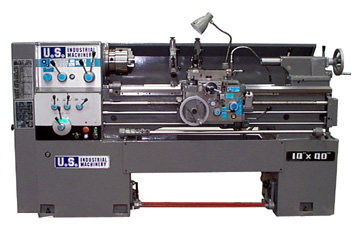

SPECIFICATIONS: |
|
Swing
Over Bed |
14" |
|
Swing
Over Cross Slide |
8.2" |
|
Swing
Over Gap |
21" |
|
Length
of Gap |
9.72" |
|
Length
of Gap in Front of Face Plate |
5.98" |
|
Distance
Between Centers |
40" |
|
HEADSTOCK: |
|
Spindle
Speeds (Number) |
12 |
|
Spindle
Speeds (Range) |
28-2000
RPM |
|
Hole
Thru Spindle |
2" |
|
Spindle
Nose Type |
D1-6 |
|
Headstock Center |
MT#6 |
|
BED: |
|
Width of
Bed |
11.78" |
|
Depth of
Bed |
14.09" |
|
Hardness
of Bed (Rockwell C) |
50 |
|
|
TAILSTOCK: |
|
Travel
of Spindle Barrel |
4.5" |
|
Diameter
of Spindle Barrel |
2.36" |
|
Taper of
Center |
MT#4 |
|
Tailstock Body Length of Bed |
11.73" |
|
Length
of Barrel Graduations on Spindle |
4" |
|
Type of
Clamping on Bed |
Lever
Clamp |
|
Lubrication System |
Reservoir |
|
TAPER
ATTACHMENT:
(Optional Extra) |
|
Taper in
Inches Per Foot |
+/-
3.25" |
|
Degrees
of Taper |
+/- 8
Degrees |
|
Maximum
Turning Length Per Setting |
14" |
|
DRIVE &
MOTORS: |
|
Type of
Input Drive |
Vee Belt |
|
Number
of Vee Belts |
4 |
|
Main
Drive Motor |
5.3 H.P. |
|
Coolant
Pump Motor |
0.16 H.P. |
|
Weight |
4100 Lbs |
|
