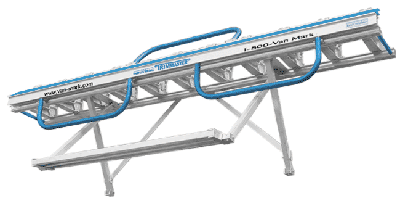

Van-Mark Mark IV Brake

For the Metal Roofing, Commercial Siding, Glazing and HVAC Professional

Xtreme™ Stand

All MARK IV Brakes On This Page Come Included With A Patented Xtreme Shop Stand
That Sets Up in Seconds and Will Not Rust, Rock or Rattle!

The Strongest Portable Brake in the World!
The Mark IV Industrial TrimMaster®, featuring new POWER slot technology, provides single user setup and operation in the shop and on the job site. Non-marring vinyl strips protect clad finishes leaving clean crisp bend lines and hems. Our unique cam-locking system clamps to the thickness of the material and not to a factory preset. Should you ever need to fine-tune your brake, each casting comes with independently adjustable UHMW plastic wedges. While some brake manufacturers have taken away your ability to make these adjustments, its nice to know TrimMaster® gives you the choice, even if you never have to use it.

Specially Designed for Job Site Bending and
Fabricating of all Heavy Gauge Materials

  • Commercial Roofing and Siding

  • Heating/Air Conditioning (HVAC)

  • Patio Enclosures

  • Emergency Repair Crews

  • Sheet Metal Workers

  • Commercial Kitchens/Ducts

  • Solar Energy Panel Installers

  • Automotive Sheet Metal Shops

  • Property Management Crews

  • Glazers and Sign Makers

POWERslot™ technology gives you more bending power with less energy resulting in a truly unique bending experience. Added walls and hollows make TrimMaster® brakes the toughest machines out there while providing the same long service life you’ve come to expect from a Van Mark Product.

Features

  • Heavy-duty extruded aluminum shop stand included with Mark IV. The Xtreme™ Shop Stand will not rock, rattle, roll or rust. Unit is fully detachable and collapsible for east fast setup and transport
  • Dual hollow base rails provide the strongest base possible. With 11 locking stations (on 10' 6" model), you can rest assured knowing your brake will go from shop to job and back without constant readjusting due to base rail warping or sagging
  • Strongest bending capacities in the world on a portable brake. Bend .063 aluminum and 20 ga. galvanized steel right on the job. Running back to the shop is a thing of the past
  • Unique Cam-Locking system locks to the thickness of the material resulting in a brake you seldom, if ever, have to adjust
  • Full loop locking and bending handles are ergonomic and provide for single operator use
  • Heavy-duty hinge design provides years worth of dependable trim bending without material curling at the ends or sags in the center
  • Mark IV Industrial now works with TrimCutter™ for quick clean material cutting right on the brake. TrimCutter™ does not ride off the brake during cutting
  • 14" Throat Depth
Trimmaster Mark IV™ Industrial
Model Length "C" Weight
IT6 6'6" (2.0m) 7 ea. 144 (65.3kg)
IT8 8'6" (2.6m) 9 ea. 180 (81.6kg)
IT10 10'6" (3.2m) 11 ea. 208 (94.3kg)
IT12* 12'6" (3.8m) 13 ea. 247 (122.0kg)
IT14* 14'6" (4.4m) 15 ea. 287 (130.2kg)

*dual bend. Handles

Material Recommended
Aluminum 0.050
Galv. Steel 20 ga
Painted Steel Grade D 24 ga
Copper 36 oz
Zinc Alloy 0.050
Stainless Steel 24 ga

Capacities are based on standard metal properties.


Click Here For Mark IV Setup Instructions

Quick-release handle pins. Click Here to Buy Tune-Up Kits Online
Quick-Connect handles
Attach and detach quickly for easy transport and setups. Faspins insert easily and stay in place during all phases of operation.
Van Mark Tune-up Kits
are a great way to keep your machine working in tip top condition. With the longest service life of any portable brake in the business, it's nice to know support and preventive maintenance parts are always available when and if you need them.
Bend With Confidence
New POWERslot™ technology not only provides increased bending llev-erage, clad finishes are also protect-ed from marring and scratching during bend.

Van-Mark Brake Accessories

Note: accessories may be incompatible with older Van-Mark products.


vanit1063.gif VANIT10
$3,299.50 $2,743.86
"MARK IV Industrial Trim Master >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"

Tcutter2_sm.gif VAN3017
$329.50 $322.91
"TRIM CUTTER >>> FREE Freight ONLY When Ordered with a Van Mark Brake, See UPS Chart if otherwise Ordered (PC090809)"

vanmark/vancd24.gif VANCD24
$359.50 $352.31
"COIL DISPENSER >>> FREE Freight ONLY When Ordered with a Van Mark Brake, See UPS Chart if otherwise Ordered (PC090809)"

Quicksc_sm.gif VAN3016
$199.50 $195.51
"QUICK SCORE >>> FREE Freight ONLY When Ordered with a Van Mark Brake, See UPS Chart if otherwise Ordered (PC090809)"

TrimForm_sm.gif VAN3015
$339.50 $332.71
"TRIM FORMER >>> FREE Freight ONLY When Ordered with a Van Mark Brake, See UPS Chart if otherwise Ordered (PC090809)"

VANIT14
$3,899.50 $3,242.82
"MARK IV Industrial Trim Master >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"

VANIT12
$3,599.50 $2,993.34
"MARK IV Industrial Trim Master >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"

VANIT8
$2,999.50 $2,494.38
"MARK IV Industrial Trim Master >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"

VANIT6
$2,599.50 $2,161.74
"MARK IV Industrial Trim Master >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"

vanmark/NwLg250_sm.gif VAN3005
$179.95 $176.35
"Unileg >>> FREE Freight ONLY When Ordered with a Van Mark Brake, See UPS Chart if otherwise Ordered (PC090809)"

diecrown_sm.jpg VAN3025
$77.95 $57.95
Crown Mould Die
++ FREE FREIGHT With Brake or SEE UPS Chart at Checkout for Freight Rate

ribdie_sm.jpg VAN3019
$64.95 $44.95
Rib Former Die
++ FREE FREIGHT With Brake or SEE UPS Chart at Checkout for Freight Rate

diebrick_sm.jpg VAN3018
$64.95 $44.95
Brick Mould Die
++ FREE FREIGHT With Brake or SEE UPS Chart at Checkout for Freight Rate

VAN3910
$169.95
Mark I 50/60 Series Tune-Up Kit, Industrial Model ++SEE UPS Chart at Checkout for Freight Rate
