Van-Mark Trim-A-Slitter

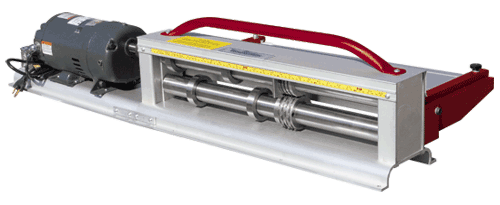

      Model S24C includes 2" shafts. Slitter shown with optional HD motor kit and perforator rolls.

Trim-A-Slitter® from Van Mark is built tough and will provide years of dependable, trouble-free service. Engineered to slit, perforate and stiffen most coil and sheet materials, the Trim-A-Slitter® is a must for anyone performing light-to-heavy duty material handling. Trim-A-Slitter® is a rugged piece of precision equipment designed for demanding on-the-job use. The unit is fully anodized to retain its integrity, good looks and function for years, no matter what the weather. Available in 14", 24" models.

For additional models including 24'C, 36", 48" and 72" see our INDUSTRIAL SLITTERS

Features

  • Hardened steel, double sided slitting knives = Long trouble-free service life

  • Precision ground & polished knife faces = Provides clean burr-free edges in all types of material

  • Anodized aluminum construction = Stands up to the rigors of all job site weather conditions

  • Virtually maintenance free = Occasional lubrication and cleaning

  • Easy to use, yet versatile = Knives and perforators reposition in seconds

  • Adjustable folding feed table with roller guides = Quickly adjust to different widths of material

  • Optional perforating dies = Allows creation of custom job site ventilation products

  • Optional power package = For fast production slitting, in the shop or on the job

  • Upgradeable = Add-on knives, perforating rolls and capacity boosters

  • Built-in tape rule = Helps maintain slitter knife orientation with material

Trim-A-Slitter Specifications

Model Arbor Dia. Max Width-in Wt.Lbs. Part No. Range
S14B 1-1/2" 14 40 3504 115V
S24B 1-1/2" 24 54 3500 2220V



Trim-A-Slitter Capacities
Model
Arbor Vinyl
Alum.
.019
Alum.
.024
Alum.
.032
Alum.
.040
Alum.
.050
Galv.
28ga
Galv.
26ga
Galv.
24ga
Galv.
22ga
Terne Copper
16oz
S14B
1.5"
10
10
8
7
5
3
5
4
3
2
7
7
S24B
1.5"
9 9 7 6 4 2 4 3 2 1 6 6

Number of slits/ribs possible for single pass

Model
Arbor Vinyl
Alum.
.019
Alum.
.024
Alum.
.032
Alum.
.040
Alum.
.050
Galv.
28ga
Galv.
26ga
Galv.
24ga
Galv.
22ga
Terne Copper
16oz
S14B
1.5"
10
10
8
7
5
3
5
4
3
2
7
7
S24B
1.5"
9 9 7 6 4 2 4 3 2 1 6 6







Trim-A-Slitter Add-Ons

  • Optional Booster Block/Blocks, part no. 3578, can be positioned along slitter shaft where added support is desired.
  • Optional Capacity Booster increases shaft strength for heavier gauge materials used in slitting and perforating operations
  • Perforating Sets. Used for making custom ventilation components right on the job. Set provides 3.625" of net free area panel linear foot per panel
  • Knife Sets. Additional knife sets are added to provide multiple slitting and rib forming during single pass through slitter. Note: Each knife edge can be used for cutting.

Note: accessories may be incompatible with older Van-Mark products.

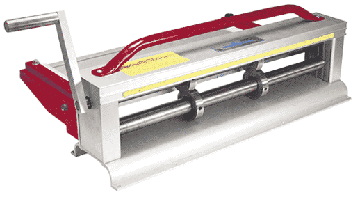

vanmark/24slit518-sm-n.gif VANS14B
$799.50 $703.77
"TRIM-A-SLITTER >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"

VANS24B
$949.50 $807.15
"TRIM-A-SLITTER >>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included (PC090809)"

TrimForm_sm.gif VAN3015
$339.50 $332.71
"TRIM FORMER >>> FREE Freight ONLY When Ordered with a Van Mark Brake, See UPS Chart if otherwise Ordered (PC090809)"

vanmark/vancd24.gif VANCD24
$359.50 $352.31
"COIL DISPENSER >>> FREE Freight ONLY When Ordered with a Van Mark Brake, See UPS Chart if otherwise Ordered (PC090809)"

vanmark/HDMotor-sm-n.gif VAN3535
$999.50
115V Heavy Duty Power Package: Includes motor, base, coupler and hardware 45lbs. ((Call 800-458-3687 For Freight Rate, If Any! ))"

vanmark/Motor-sm-n.gif VAN3521
$699.50
115V Slitter Power Package, Includes Gear Motor, Base, Coupler & Hardware, 45lbs. ((Call 800-458-3687 For Freight Rate, If Any! ))"
