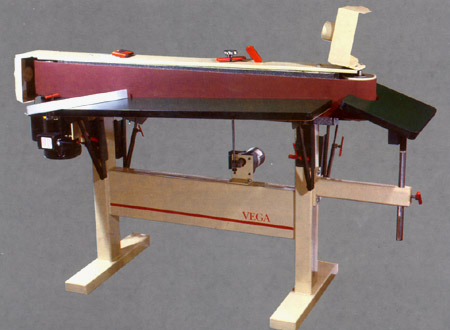

Vega EBS Series Belt Sander

Vega Edge Belt Sander
All Vega Edge belt Sanders include thoughtfully designed features which allow greater productively and durability at a truly realistic price.

Extremely Heavy-Duty
A solidly constructed machine designed to withstand the rigors of day to day production sanding. Compare this machine to any on  the market....

Belt Tension Assembly
A superior idler pulley mechanism makes belt tracking insensitive to belt tension changes. The 5" Urethane coated steel pullet with heavy sealed bearings provides excellent belt support

Table Support Bracket
All main table support brackets allow the table to be tilted up 15° and down 48 ° by loosening the very secure tee handle. Table also adjusts in and out. Table can be adjusted vertically to provide 4" bias. No wrenches required. Table adjusts in and out to provide desired clearance from the belt. Table size is 12" x 48"

Adjustable Curve Platten (Accessory)
It is always a challenge to sand large curves without producing a series of arcs. The accessory solves the problem for a wide range of shapes. The large adjusting knob varies the arc of curve from flat to about a 12" radius. Quickly attaches to the rear of the sander and can be used with Accessory Side Table

Oscillating Drive (Accessory)
A 1/20 HP 110V Gearhead motor oscillates the idler pulley to provide 1" belt movement 32 cycles per minute. An electrical disconnect is provided should you want to use it in a non-oscillation mode. Very easy to install on standard unit.

Features

• Ideal belt speed-4000FPM

• Easy belt change

• Pedestal design for operator foot room and easy clean-up

• Tee handles on nearly all adjustments-wrenches not required

• Table-Formica faced & reinforced 1 1/8 MFD tilts 15° up and 45° down. 4" bias adjustment

• Motor-American Made 1825RPM, TEFC. 1 1/8" shaft, industrial type

• Dust pickup-Adjustable hoods (2)

• Platten-Surface ground steel 8" x 48" w/graphite coated canvas wear plate

• Drive pullet-8" diameter steel

• Idler pulley-5" urethane coated steel

• Miter guage-18"

• Toggle tension release for fast easy belt change

• Superior idler pulley mechanism makes belt tracking insensitive to belt tension changes

• Weight 475lbs.

Accessories

• #71080-End table assembly-Fully adjustable for height and tilt. Operated with 5" diameter idler pulley for sanding inside radii

• #71066-Second Side Table-Same as standard Front Table. Can be used with the Adjustable Curve Platten or the Rear Flat Platten

• #71102-Adjustable Curve Platten-For sanding large radius inside curves.

• #71013-Oscillating Drive-'Bolts on' to provide 1" belt excursion for longer belt life and more efficient stock removal.

• #71166 Rear Flat Platten 8" x 48"'Bolts On' to provide a second flat sanding station. Constructed of Hard Maple covered with graphite impregnated canvas.

Specifications

• Model 71103-EBS-6-1, 110V, 1Ph, 2HP

• Model 71104-EBS-6-2, 220V, 1Ph, 2HP

• Model 71105-EBS-6-3, 220V, 3Ph, 3HP
