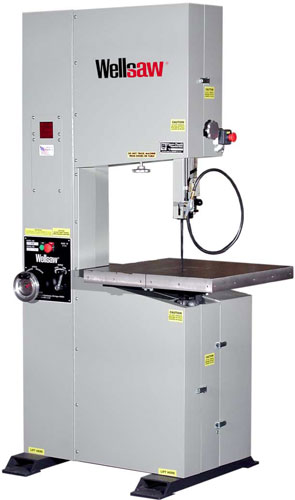

Wellsaw Vertical Bandsaws




WELLSAWS work harder and last longer because they are built bette

Key Features:

  • Heavy Tube Steel Frame

  • Precision Ground Cast Iron Table with replaceable throat plate

  • Unique Heavy Duty Roller Guides

  • Rotate 90° to Accommodate Long Materials

  • Baldor® Motor

  • Magnetic Starter with Undervoltage and

  • Overload protection

  • 115 Volts at Controls

  • Two Speed Cast Iron Gearbox with Helical Gears and Oil Bath

  • Lubrication for Quiet Operation

  • Blade Speed Indicator

  • Blade Tension Indicator

  • Flexible Arm Worklight

  • Chip Blower (shop air)

  • Removable Chip Tray

  • Tiger-Tooth® Bi-Metal Blade

  • OSHA Blade Guarding

  • Rotary Blade Brush


Factory Installed Options Avaliable:

  • Ideal® Blade Welder, Grinder and Shear

  • 24" Extended Height (Model V20-24)

  • Miter Gauge

  • Rip Fence, 26"

  • 1" blade (not available on V-20-24)

  • Vector AC Drive Variable Bandspeed

  • Spray Mist Coolant System

  • Vacuum Nozzle

  • Extension Table

  • Stock Stand

  • 5 ft. and 10 ft. Non-Powered Roller Conveyor

  • J.I.C. or NFPA Electrics (w/ fused disconnect)
Specifications
Capacity Throat 20" Deep
Table to Guide 16" High
V-20-24 24" High
Blade Size Std. 3/16" through 3/4"
Optional
(this option not available on V-20-24)		 1/2" through 1"
Blade Length Std. 14’ - 9" (177")
V-20-24 16. -1" (193")
Band Wheels 21" Cast Aluminum with replacable rubber tires
Blade Speeds Low Range 45-400 SFPM
High Range 325-3000 SFPM
Blade Guides Sealed Ball Bearings with 90° Rotation Feature
Table Size 26" x 26" Cast Iron
Table Tilt

5° Inside and 45° Outside
Table Height 37-1/2
Drive Motor Three Phase

3HP 208/230/460 Volt
Single Phase

2HP 115/208/230 Volt
Floor Area 32"Wide x 48"Deep
Height Std

83-1/2"
V-20-24

91-1/2"
Shipping Weight Std 950 lbs.
V-20-24 1050 lbs.

WELDL V20-552
$66.00
"Roller guides for 1" blade for V-20 & V20-24 Vertical Bandsaw Call 1-800-458-3687 For Freight Rate If Applicable"

WELDL V20-763
$2,208.00 $1,854.72
J.I.C. Electrics (general purpose) >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)

WELDL V20-802
$998.00 $838.32
Rip Fence and Miter guide package >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)

WELDL V20-803
$529.00 $444.36
Rip Fence only >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)

WELDL V20-804
$665.50 $559.02
Miter Guide only >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)


WELDL V20-553
$72.60 $60.98
" Roller Guides for 1"" blades >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)"


WELDL V20-601
$329.00 $276.36
" Spray Mist / Coolant System, 1 Gallon capacity >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)"


WELDL V20-718
$9,315.00 $7,824.60
"Made in the USA - 20"" x 24"" Vertical Bandsaw, 3HP TEFC 380/50/3 >>> Call 1-800-458-3687 for a Freight rate! (PC-102809)"


WELDL V20-728
$2,900.00 $2,436.00
" Blade Welder, Shear & Grinder, 1"" capacity, 230V >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)"


WELDL V20-729
$2,900.00 $2,436.00
" Blade Welder, Shear & Grinder, 1"" capacity, 460V >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)"


WELDL V20-730
$2,900.00 $2,436.00
" Blade Welder, Shear & Grinder, 1"" capacity, 115V >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)"


WELDL V20-731
$8,985.00 $7,547.40
"Made in the USA - 20"" x 24"" Vertical Bandsaw, 2 HP 115/60/1 >>> Call 1-800-458-3687 for a Freight rate! (PC-102809)"


WELDL V20-732
$595.00 $499.80
NFPA Electrics (Nema 12 Enclosure with Fused Disconnect) >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)


WELDL V20-748
$8,985.00 $7,547.40
"Made in the USA - 20"" x 24"" Vertical Vandsaw, 2 HP 230/60/1 >>> Call 1-800-458-3687 for a Freight rate! (PC-102809)"


WELDL V20-749
$8,985.00 $7,547.40
"Made in the USA - 20"" x 24"" Vertical Bandsaw, 3HP TEFC 208/60/3 >>> Call 1-800-458-3687 for a Freight rate! (PC-102809)"


WELDL V20-750
$8,985.00 $7,547.40
"Made in the USA - 20"" x 24"" Vertical Bandsaw, 3HP TEFC 230/60/3 >>> Call 1-800-458-3687 for a Freight rate! (PC-102809)"


WELDL V20-751
$8,985.00 $7,547.40
"Made in the USA - 20"" x 24"" Vertical Bandsaw, 3HP TEFC 460/60/3 >>> Call 1-800-458-3687 for a Freight rate! (PC-102809)"


WELDL V20-752
$2,900.00 $2,436.00
" Blade Welder, Shear & Grinder, 1"" capacity, 208V >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)"


WELDL V20-776
$8,985.00 $7,547.40
"Made in the USA - 20"" x 24"" Vertical Bandsaw, 2HP 208/60/1 >>> Call 1-800-458-3687 for a Freight rate! (PC-102809)"


WELDL V20-829
$9,315.00 $7,824.60
"Made in the USA - 20"" x 24"" Vertical Bandsaw, 3HP TEFC 220/50/3 >>> Call 1-800-458-3687 for a Freight rate! (PC-102809)"


WELDL V20-832
$9,337.00 $7,843.08
"Made in the USA - 20"" x 24"" Vertical Bandsaw, 3HP TEFC 220/50/3 >>> Call 1-800-458-3687 for a Freight rate! (PC-102809)"


WELDL V20-858
$189.00 $158.76
4000 SFPM Maximum Speed Option >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)


WELDL V20-872
$165.00 $138.60
Vacuum nozzle >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)


WELDL V20-890
$325.00 $273.00
" Table Extension, Side, w/leg 26"" x 26"" >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)"


WELDL V20-891
$222.00 $186.48
" Table Extension, Front, 26"" x 12"" >>> Free Freight ONLY When Added to a Bandsaw Order. (PC-102809)"
