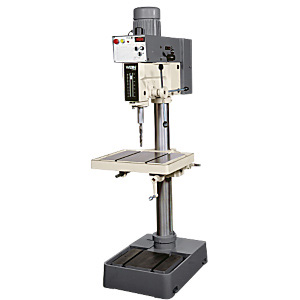

Wilton Tradesman Electronic Variable Speed Drill Presses

Standard Features

  • Infinitely variable speeds 65 to 2000rpm
  • #3 Morse taper spindle
  • High/Low gear box drive system
  • Latest AC Inverter variable speed technology
  • High torque at all speeds both forward and reverse
  • Continuous speed adjustment while in operation
  • Front mounted LED spindle rpm readout
  • Forward and reverse for tapping standard
  • Front or side operated rack and pinion table raiser
  • Machine T-slotted base with built-in coolant tank for optional coolant system
  • Head is massively constructed for more accuracy and rigidity

Standard Features for 2221VS

  • Variable spindle speeds 300 to 2000 rpm
  • Front Mounted-Positive control depth stop
  • 6" spindle travel
  • Heavy duty cast iron design
  • Large precision ground T-slot production table
  • Front or side operated rack and worm gear table raiser
  • Table rotates 360° around the column
  • Machine T-slotted base with built-in coolant tank for optional coolant system
  • Head is massively constructed for more accuracy and rigidity
There are no further details.

Specifications

Model 2232AC/2234AC 2221VS/2223VS

Cast Iron Drilling Capacity (in.)

1-1/2 1-1/4

Steel Drilling Capacity (in.)

1-3/8

1

Column Diameter (in.   4-1/2
Spindle Speeds (RPM) 65 to 2000

300 to 2000

Distance Spindle to Column (max./in.)

10-7/16

10-7/16

Distance Spindle to Table (in.)

32-3/8

32-3/8

Spindle Travel (in.)

6 6

Spindle Taper

3MT 3MT

Quill Diameter (in.)

3

3

Table Size (in.)

22 x 18-3/4 18-1/8 x 14-3/4

T-Slots Number & Size (in.)

2&S/8 2&S/8
Table Travel (in. 32-3/8 18-1/8 x 14-3/4

Base Working Surface (in.)

15-1/4 x 12-1/16

15-1/4x12-1/16

Base Slots Number & Size (in.)

2&S/8

2&S/8

Motor

2HP, 220V, 3Ph

2HP, 115/220V, 1Ph

Motor

2HP, 440V, 3Ph

2HP, 220/440V, 3Ph

Overall Dimensions (WxDxH/in.)

27 x 37 x 82-1/4

27x34-1/4x77-1/4

Net Weight (lbs.)

792

715

Capacities for continuous production use will vary based on application

There are no listed accessories.
s-h alt
354221
** J-2221VS, 20 VARIABLE SPEED DRIL
Mfg. item #: 354221
WMH354221
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

724
s-h alt
354214
J-2232AC, 20 VARIABLE SPEED DRILL P
Mfg. item #: 354214
WMH354214
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

724
