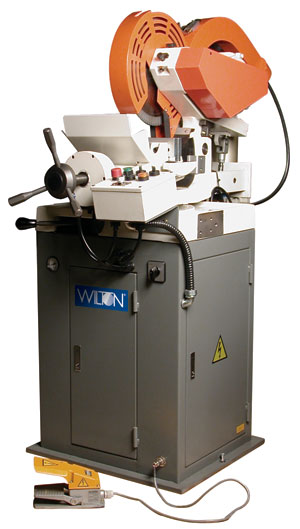

Wilton FK Series Cold Saws

The FK SERIES Cold Saws

Cold saws are ideal for low and medium carbon steels and various sizes and shapes of tubes and profiles. The pivot head design is suited for low volume production applications and for job shops that need to do utility cutting. They are available in both manual and semi-automatic models

Features For FK350-2K/FK350-4K Manual

  • Sturdy gear box design

  • Manually cuts from 45° left to 45° right

  • Miter stops at 90°,45°,and 45° right

  • Double self-centering vise for burr- free cuts

  • Two cutting speeds

  • Thermal overload protection with magnetic starter

Standard Equipment

  • Flood coolant system

  • Adjustable work stop

  • Fully enclosed blade guard

  • Solid one piece steel weldment base

  • Tool kit

  • One high speed 350mm blade (579039)

Features For FK350-2SX/FK350-4SX Semi-Automatic

  • Ferrous

  • Semi-Automatic

  • Sturdy Gear Box Design

  • Manually Cuts from 45° left to 45° right

  • Miter Stops at 90°, 45°, and 45° right

  • Double Self-Centering Vise for Burr- Free Cuts

  • Two cutting speeds

  • Thermal overload protection with magnetic starter

  • Low voltage protection

  • Emergency stop button

Standard Equipment

  • Flood Coolant System

  • Adjustable work stop

  • Fully enclosed blade guard

  • Solid one piece steel weldment base

  • Tool Kit
Specifications
STOCK NUMBER FK350-2 FK350-4 FK350-2SX FK350-4SX
Cutting Cap. For Tubing
Round (in) 90°
Round (in) 45°
Square (in) 90°
Square (in) 45°
Rectangle (in) 90°
Rectangle (in) 45°                                             		4 1/2
3 1/2
4 1/4x4 1/4
3 1/2x3 1/2
5 1/2x3 3/4
3 1/2x3 1/2		 4 1/2
3 1/2
4 1/4x4 1/4
3 1/2x3 1/2
5 1/2x3 3/4
3 1/2x3 1/2		 4 1/2
3 1/2
4 1/4x4 1/4
3 1/2x3 1/2
5 1/2x3 3/4
3 1/2x3 1/2		 4 1/2
3 1/2
4 1/4x4 1/4
3 1/2x3 1/2
5 1/2x3 3/4
3 1/2x3 1/2
Cutting Cap. For Solid
Round (in)90°
Round (in)45°
Square (in)90°,45°
Square (in)45°                                        		2
1 3/4
2x2
1 3/4x1 3/4		 2
1 3/4
2x2
1 3/4x1 3/4		 2
1 3/4
2x2
1 3/4x1 3/4		 2
1 3/4
2x2
1 3/4x1 3/4
Blade Size (mm) 350x32x2.5 350x32x2.5 350x32x2.5 350x32x2.5
Blade Speeds (rpm) 44,88 44,88 44,88 44,88
Max. Vise Opening (in) 6 6 6 6
Motor for FK350-4SX 2HP,230V,3Ph 3HP,460V,3Ph 2HP,230V,3Ph 3HP,460V,3Ph
Floor Space Required (in/l x w x h) 43 x 25 x 75 43 x 25 x 75 50 x 28 x 60 50 x 28 x 60
Net Weight (lbs) 706 706 794 794


WMHFK350-2K
$4,949.00 $3,995.00
" (( SPECIAL DEAL On this item - Overstock Sale - Call Robert @ 800-458-3687 x801 )) 2HP, 3PH, 2-Speeds, 230V, with blade +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMHFK350-2SXK
$8,399.00 $6,895.00
" (( Want a Better Price Call 800-458-3687 Today )) Semi-Auto, 2HP, 3PH, 2 Speeds, 230V, with blade +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMHFK350-4K
$4,949.00 $3,995.00
" (( Want a Better Price Call 800-458-3687 Today )) 3HP, 3PH, 2-Speeds, 460V, with blade +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMHFK350-4SXK
$8,399.00 $6,895.00
" (( Want a Better Price Call 800-458-3687 Today )) Semi-Auto, 3HP, 3PH, 2 Speeds, 460V, with blade +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""


WMH5785352
$237.89 $202.29
Foot Switch Control >>>>> FREE Ground UPS anywhere in the lower 48 States.

WMH579036
$297.53 $253.00
350 - 2.5 - 32 / 360 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579038
$297.53 $253.00
350 - 2.5 - 32 / 220 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579039
$297.53 $253.00
350 - 2.5 - 32 / 180 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579040
$297.53 $253.00
350 - 2.5 - 32 / 160 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579041
$297.53 $253.00
350 - 2.5 - 32 / 140 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579042
$297.53 $253.00
350 - 2.5 - 32 / 120 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579043
$297.53 $253.00
350 - 2.5 - 32 / 100 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579045
$297.53 $253.00
350 - 2.5 - 32 / 74 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579046
$226.76 $192.82
350 - 2.5 - 32 / 60 Teeth >>>>> FREE Ground UPS anywhere in the lower 48 States.

WMH579047
$329.46 $280.15
350 - 2.5 - 32 / 54 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579048
$329.46 $280.15
350 - 2.5 - 32 / 44 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579052
$374.16 $318.16
350 - 3 - 32 / NF 180 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States


WMH579053
$377.92 $321.36
350 - 3 - 32 / NF 120 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States


WMH579054
$374.16 $318.16
350 - 3 - 32 / NF 90 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579060
$409.28 $348.03
350 - 3.4 - 32 / 60 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579061
$445.13 $378.51
350 - 3.4 - 32 / 72 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579062
$479.38 $407.63
350 - 3.4 - 32 / 84 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579063
$480.76 $408.81
350 - 3.4 - 32 / 96 Teeth >>>>> FREE Ground UPS anywhere in the lower 48 States.

WMH579064
$480.87 $408.90
350 - 3.4 - 32 / 108 Teeth +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States

WMH579065
$480.76 $408.81
350 - 3.4 - 32 / 120 Teeth >>>>> FREE Ground UPS anywhere in the lower 48 States.
