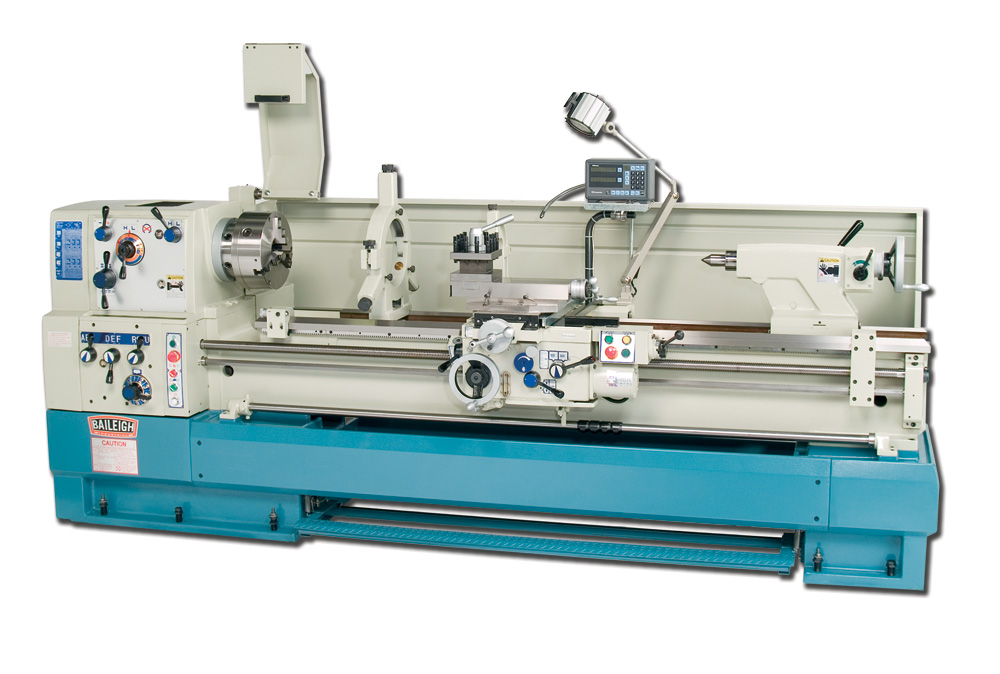

Baileigh PL-2080 Precision Metal Lathe

Precision Metal Lathe PL-2080

Made in Taiwan

When size of your lathe does matter, look at the PL-2080 precision metal lathe from Baileigh Industrial.  This engine lathe has an ample 20 inch swing over bed with 80 inch between centers and a powerful 15HP motor.  This powerful motor turns the precision gear head with different 12 speeds to a range of rpms from 20 to 1500.  Everything about the PL-2080 says power.

The body of the PL-2080 is made from the best cast iron to ensure a rigid and stable platform in which to work.  The cast pieces are fully integrated with the head stock, making sure every joint is tight.  The ways are polished and have integrated wipers to keep them moving like the day they were new for years to come.

But just because this is one monster of a machine, dont think we forgot the features.  The PL-2080 precision metal lathe comes with Mitutoyo 2 axis digital readout system, 12 inch 3-jaw universal chuck, longitudinal rapid traverse , 10 inch back plate, coolant system, steady rest, follow rest, headstock chuck guard with micro switch, micrometer saddle stop, rear splash guard, and halogen work light.

If you would like more information on the PL-2080 precision metal lathe, contact a Southern-Tool representative.





Specifications
Model PL-2080
Speed 20 - 1550 rpm
Spindle Bore 3.125 inch
Spindle Nose D1-8 inch
Threads Diametrical Qty Speed 50 / 4 - 112 D.P.
Threads Imperial Qty Speed 60 / 2 - 112 T.P.I.
Threads Metric Qty Speed 60 / .2 - 14 mm pitch
Threads Module Qty Speed 50 / .2 - 7 M.P.
Spindle Taper Sleeve Morse #5
Spindle Taper Nose Morse #7
Tailstock Quill Dia 2.9375 inch
Tailstock Quill Taper Morse #5
Tailstock Quill Travel 6.3125 inch
Compound Rest Travel 10 inch
Center Length 80.313 inch
Center Height 10 inch
Bed Width 16.125 inch
Longitudinal Feeds Metric Qty Speed 50 / .037 - .983 mm / rev.
Main Motor 15 hp
Longitudinal Feeds Imperial Qty Speed 50 / .0014 - .0387 inch / rev.
Lead Screw Diameter 1.5 inch
Lead Screw Thread Pitch 4 T.P.I.
Max. Swing In Gap Length 7.0625 inch
Max. Swing Over Bed 20 inch
Max. Swing Over Cross Slide 13 inch
Max. Swing In Gap Dia 26.375 inch
Cross Feeds Imperial Qty Speed 50 / .0007 - .01935 inch / rev.
Cross Feeds Metric Qty Speed 50 / .0185 - .52 mm / rev.
Cross Slide Travel 12.5 inch
Power 220V / 3-phase
Shipping Weight 6,050 lbs.
Distance Between Centers 80 inch
Shipping Dimensions 121 x 54 x 67 inch
specifications subject to change without notice



There are no listed accessories.

PL-2080
220V 3 PH 15 HP PRECISION LATHE. 20 SWING 80 LENGTH. 3-1/8 BORE.
CALL FOR YOUR BROTHER-IN-LAW PRICE
Mfg. item #: PL-2080
BAIPL-2080
lease to own for as little as:$652 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$34,385.25
