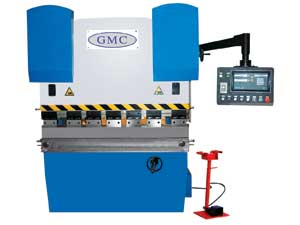

GMC 70 Ton Hydraulic Press Brake

Standard Features for GMC Hydraulic Press Brakes

  • ISO 9001 certified

  • Meet OSHA safety standard

  • All steel construction for maximum rigidity

  • Hydraulic logic system centrally located and quiet

  • Powered bending angle setting advice ( Ram Stroke ) with digital readout

  • OSHA required Laser Curtain Safety  protection system

  • Safety type foot pedal with handle and E-stop switch

  • Safety 24V low voltage & overload protection

  • One year industrial warranty for parts

Standard Equipment for GMC Hydraulic Press Brakes

  • 24"Front operated power back gauge with (2) axis Digital readout Resolution 0.001" and with micro adjustment handwheel

  • Laser curtain safety protection

  • Powered bending angle setting device with micro adjustment

  • (2) large Safety protection guards on both sides of machine

  • Upper forming punch has adjustable device for angle compensation

  • 2 each 24" front support arms

  • Gooseneck upper forming punch and lower die set with multiple Vees

  • Removable safety foot pedal to meet OSHA safety standard

  • Tool box and leveling pads

SPECIFICATIONS

Model No.

GMC HPB-7008 GMC HPB-7010
Maximum pressure 70 Tons 70 Tons
Bending length capacity 8' 10'
Distance between uprights (housing) 78" 106"
Ram Stroke travel 5" 5"
Table width 6-1/2" 6-1/2"
Distance between table and ram 15" 15"
Throat Depth 10" 10"
Approach speed, inch / second 3" 3"
Working speed , inch / second 0.33" 0.33"
Return speed , inch / second 3" 3"
Main motor 7-1/2 HP 7-1/2 HP
Motor for power bending angle device 3/4 HP 3/4 HP
Hydraulic oil tank capacity 50 Gal. 70 Gal.
Machine weight , LBS 9650 LBS 11850 LBS
Machine size, L x W x H 102" x 48" x 86" 130" x 48" x 86"
