IMER Masonry 500

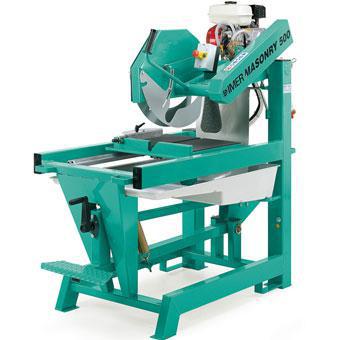

imer masonry 500 block head 20 inch saw

At a Glance
Specifications
More Information
imer masonary 500 saw models

No Longer available replaced by the Imer 750 "Little Beast"

IMR1188858

Specifications
Blade dia	20" to 22"
Blade shaft dia	1"
Max. cutting length	18" / 22" w/plunge cut
Max. cutting depth	8"
Cutting table dim.	20" x 16"
Weight (palletized)	350 (375) lbs
Engine rating (electric)	9 hp honda (5 hp, 220v, 1p)
Blade speed	2,100 rpm
Water pan capacity	9 gal
Self-priming centrifugal pump	3 gpm
Operating Dimensions
Length	62"
Height	28"
Width	66"

MASONRY 500 Block Head 20"

Accuracy
The cutting tray roller system is the best in the industry, the two 1" steel guide bars provide great accuracy and are fully adjustable. This saw will remain accurate for years to come.

BLADE NOT INCLUDED

Quality
The box steel frame is very rigid yet extremely light for a saw of this size, proven design technique combined with high quality steel means a saw does not have to be bulky to be strong.

Electric Motor
The Masonry 500 Block Head is also available with a 5 hp/220V electric motor.

Versatility
The single arm frame design allows the passage of large or irregular materials.

Power
The Honda 9 hp engine drives the blade through an oil bath clutch, this eliminates vibrations and leads to vastly improved accuracy and reduces operator fatigue.

Toughness
The water pan slides out like a dresser drawer for easy cleaning, while the ABS plastic construction means it will not crack.

No longer available
