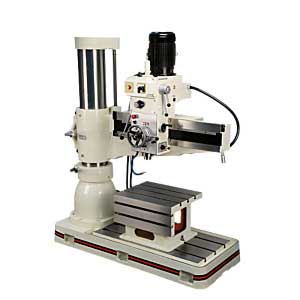

Jet J-1100R-4 4" Radial Arm Drill

The Jet J-1100R-4 4" ARM RADIAL DRILL PRESS 3HP, 460V
has a 2 Year warranty

  • The power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads
  • The spindle is made of the finest case hardened steel for extra strength and wear
  • The spindle is supported by double row taper roller and thrust ball bearings at the nose with trust and rasial axis bearings at the top
  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
  • Push button controls are all reduced to 110V
  • Electrical cir cuits are located in the built-in control box at the rear of the arm- this keeps the contols dust and humidity free while making them easily accessible for maintenance.
  • Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs
  • Arm raising safety device prevents arm from dropping
  • Counter balanced mechanism for spindle return
  • 12 speeds/3 feed rates make exotic materials easier to drill, bore and tap
  • Centralized control center
  • Automatic tool ejector
  • Independent arm manual clamping system, which locks and unlocks the head and column
  • Built in work light
  • Coolant pump
  • Tool kit
  • Box table
Detailed Specifications
Part Number 320035
Arm Travel Vertical (in.) 22-7/16
Base Dimensions (in.) 67-3/4 X 28 X 6-1/2
Boring Capacity Cast Iron (in.) 4-3/4
Boring Capacity Steel (in.) 3-3/8
Brand Jet
Column Diameter (in.) 10-1/4
Coolant Pump Motor 1/8 HP
Distance Base to Spindle (max/in.) 50
Distance Base to Spindle (min/in.) 18-1/2
Distance Column to Spindle (max/in.) 43-5/16
Distance Column to Spindle (min/in.) 9-5/8
Drilling Capacity Cast Iron (in.) 2-1/4
Drilling Capacity Mild Steel (in.) 1-3/4
Elevating Motor 1 HP
Height 89 inch
Length 74 inch
Max Distance Spindle to Table ( in.) 33-21/32
Model Number J1100R-4
Motor 1-1/2 to 3 HP, 460V, 3 Ph
Net Weight 4190 pound
Number of Spindle speeds 12 (44 - 1500)
Overall Dimensions 74 x 34 x 89
Part Number 320035
Quill Down feed Rates (IPR) 3 (.002, .004, .006)
Quill Travel (in.) 9
Quill Travel w/ Powerfeed engaged (in.) 8-21/32
Spindle Taper MT-4
T-Slots Number and Size (in.) 3 & 3/4
Table Dimensions (in.) 24-3/4 X 20-1/2 X 16-1/2
Tapping Capacity Cast Iron (in.) 1-1/4
Tapping Capacity Mild Steel (in.) 1
Travel of Head Horizontal (in.) 32-1/4
Web Description J-1100R-4 4" ARM RADIAL DRILL PRESS 3HP, 460V
Width 34 inch
