| Features:
- Blade guides: side-eccentric shaft and ball bearing;
rear-ball bearings
- Blade drive is steel, heat treated worm driving a bronze
worm gear in oil bath
- Heavy duty cast iron saw head and table
- Oil bath hardened and ground worm gear
- Adjustable ball bearing blade guides
- Blade wheels are made of flanged cast iron
- Adjustable hydraulic feed system
- Automatic shut-off at end of cut
|
Specifications |
Model
Number |
J-3410-2 |
Height |
41 inch |
Width |
18 inch |
Length |
50 inch |
Net Weight |
360 pound |
Motor |
3/4HP,
220VAC, 1ph |
Cutting
Capacity (in.) |
7 x 12 |
Round at 90 Degrees (in.) |
7 |
Round at
45 Degrees (in.) |
6 |
Rectangle at 90 Degrees (in.) |
7 X 10 |
Square at
90 Degrees (in.) |
7 |
Blade Size (in.) |
3/4 X .035
X 93 |
Blade
Speeds (SFPM) |
86, 132, 178, 260 |
Bed Height (in.) |
23-1/2 |
Blade
Length (in.) |
93 |
Rectangle at 45 (in.) |
6 x 7 |
Base/ 3
Legs Area Required (in.) |
18 x 41 |
Height Range (in.) |
50 |
|
|
There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.

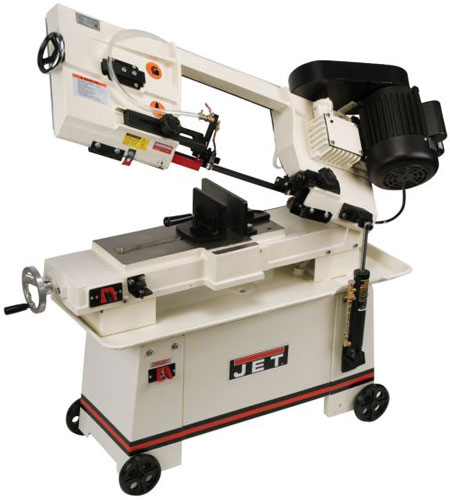

J-3410-2, 7 X 12 HORIZONTAL BANDSA
Mfg. item #: 414455
WMH414455
Call for freight quote on this item or we will confirm freight charges before shipping.1
|
