Kwikool SAC2421

Air Cooled Strategic Air Center

s-h alt

s-h alt



SPECIFICATIONS
COOLING CAPACITY
BTU/hr @ 95°F at 60% RH 23,500 (2 Ton)
COMPRESSOR DATA
Compressor Type Hermetic Recip.
Operating Temperatures 60°F-110°F 50% RH

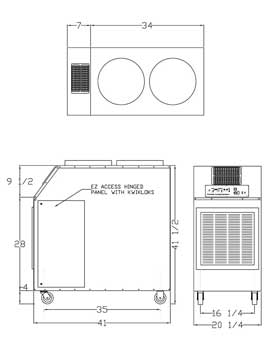

DIMENSIONAL DATA
Width (Inches) 20.25"
Depth (Inches) 41"
Height (Inches) 41.5"
Weight ( Pounds) 278
Shipping Weight (Pounds) 308
FAN DATA
  EVAPORATOR  CONDENSER
Fan Type
(Centrifugal) 		Direct Drive Direct Drive
Air Flow
(CFM) 		750/3 1400
Supply Air Chute Data Louver n/a
Supply Air Chute Max. Length n/a n/a
Condenser Hose Data n/a 2 - 14"x8'
Condenser Hose Max. Length n/a 25'
Motor HP 1/4 1/2
SAFETY DEVICE DATA
Compressor Overload Internal
Fan Motor Overload Automatic Internal
Evaporator Freeze-up Constant Pressure/Fan
Control
High Pressure Manual
Low Pressure Automatic
Compressor Short Cycle Yes
Automatic Restart Yes
Thermostat Digital Microprocessor
Condensate Pump Overflow Yes
Condensate Tank Overflow Yes
ELECTRICAL DATA
Power Supply (Volts) 208/230-1Ø
Current Consumption (Amps) 13.75/12.5
Power Consumption (KW) 2.4
Circuit Breaker Size  (Amps) 20
Min/Max Voltage 195-225
Power Cord Gauge/Length 12AWG/6'
Plug Configuration NEMA 6-20



Click Here To Download Printer Friendly Specification Chart

SAC2421

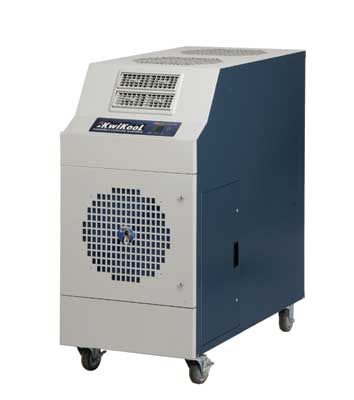

23,500 BTUS 2-TON 230V/20 AMP AIR COOLED PORTABLE AIR CONDITIONER
Mfg. item #: SAC2421
KWISAC2421
lease to own for as little as:$64 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,223.50

4259
DC-24
AIR CHUTE KIT WITH 2 6-INCH COLD AIR CHUTES FOR USE WITH SAC2411, SAC2421, AND SAC3021
Mfg. item #: DC-24
KWIDC-24
Call for freight quote on this item or we will confirm freight charges before shipping.1
$198.45

4259
DCR-14
DCR-14; 14-INCH FLANGE - USED TO DUCT COLD AIR FROM SPACE TO OUTSIDE UNIT. 14-INCH FLANGE, 1 REQUIRED FOR RETURN AIR FLOW
Mfg. item #: DCR-14
KWIDCR-14
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$24.80

526
SAC2421-C
AIR-COOLED , SAC2421 , CEILING KIT ,
Mfg. item #: SAC2421-C
KWISAC2421-C
Call for freight quote on this item or we will confirm freight charges before shipping.1
$304.81

4726
