| These low
mast stackers are like portable lift tables. They can be used as
transporters, stackers and mobile work positioners. Use them
anywhere you need to vertically position loads but don't want to
have a dedicated device. WP Series Non-Straddle Fork-over
Design (For use with open bottom pallets or skids only)
Features:
- 2000 - 3000 lb capacity
- 24" load centers
- Lifting heights - 36" through 60"
- Fixed mast
- 2" thick x 6 1/4" wide x 42" long fixed steel forks
- 17" high fork carriage
- 14" fork I.D. and 26 1/2" fork O.D.
- 3 1/4" lowered height
- Steering wheel for greater mobility
- Lifting speed 4" per second 2000 lb lift
- Lifting speed 2" per second 3000 lb lift
- Fixed base
- Heavy-duty 12 volt deep cycle battery
- Built-in 15 amp tapering battery charger
- Hand operated floor lock
- Nylon front load wheels
- Polyurethane rear wheels 2000 lb models
- Nylon rear wheels 3000 lb models
- Optional slip-on platforms available
- 48" long forks available
|
  |
|
SPECIFICATIONS |
Model
Number |
Load
Capacity |
Raised
Height |
Lowered
Height |
Dimensions
HxWxL |
Base Legs
I.D. / O.D. |
Wheel Dia.
Front / Rear |
Shipping
Weight |
|
WP Series - Non-Straddle - 24" Load
Center |
| WP36-20 |
2000 lbs |
36" |
3 1/4" |
60"x28"x65" |
14"/26 1/2" |
3" / 8" |
710 lbs |
| WP48-20 |
2000 lbs |
48" |
3 1/4" |
72"x28"x65" |
14"/26 1/2" |
3" / 8" |
710 lbs |
| WP60-20 |
2000 lbs |
60" |
3 1/4" |
84"x28"x65" |
14"/26 1/2" |
3" / 8" |
820 lbs |
| WP36-30 |
3000 lbs |
36" |
3 1/4" |
60"x28"x65" |
14"/26 1/2" |
3" / 8" |
760 lbs |
| WP48-30 |
3000 lbs |
48" |
3 1/4" |
72"x28"x65" |
14"/26 1/2" |
3" / 8" |
800 lbs |
| WP60-30 |
3000 lbs |
60" |
3 1/4" |
84"x28"x65" |
14"/26 1/2" |
3" / 8" |
850 lbs |
|

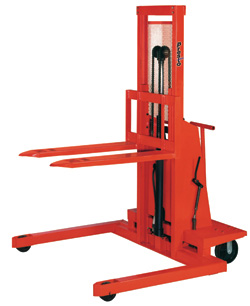

| Straddle
Features:
- 2000 - 3000 lb capacity
- 24" load centers
- Lifting heights - 36" through 60"
- Fixed mast
- 2" thick x 6 1/4" wide x 42" long fixed steel forks
- 17" high fork carriage
- 14" fork I.D. and 26 1/2" fork O.D.
- 2" lowered height
- Steering wheel for greater mobility
- Lifting speed 4" per second 2000 lb lift
- Lifting speed 2" per second 3000 lb lift
- Fixed base
- Heavy-duty 12 volt deep cycle battery
- Built-in 15 amp tapering battery charger
- Hand operated floor lock
- Phenolic front load wheels
- Polyurethane rear wheels 2000 lb models
- Nylon rear wheels 3000 lb models
- Optional slip-on platforms available
- 48" long forks available
|
 |
|
SPECIFICATIONS |
Model
Number |
Load
Capacity |
Raised
Height |
Lowered
Height |
Dimensions
HxWxL |
Base Legs
I.D. / O.D. |
Wheel Dia.
Front / Rear |
Shipping
Weight |
|
WPS42 Series - 42" I.D. - 24" Load
Center |
| WPS4236-20 |
2000 lbs |
36" |
2" |
59"x48"x65" |
42" / 48" |
5" / 8" |
720 lbs |
| WPS4248-20 |
2000 lbs |
48" |
2" |
71"x48"x65" |
42" / 48" |
5" / 8" |
745 lbs |
| WPS4260-20 |
2000 lbs |
60" |
2" |
83"x48"x65" |
42" / 48" |
5" / 8" |
770 lbs |
| WPS4236-30 |
3000 lbs |
36" |
2" |
59"x48"x65" |
42" / 48" |
5" / 8" |
750 lbs |
| WPS4248-30 |
3000 lbs |
48" |
2" |
71"x48"x65" |
42" / 48" |
5" / 8" |
775 lbs |
| WPS4260-30 |
3000 lbs |
60" |
2" |
83"x48"x65" |
42" / 48" |
5" / 8" |
800 lbs |
|
WPS50 Series - 50" I.D. - 24" Load
Center |
| WPS5036-20 |
2000 lbs |
36" |
2" |
59"x56"x65" |
50" / 56" |
5" / 8" |
730 lbs |
| WPS5048-20 |
2000 lbs |
48" |
2" |
71"x56"x65" |
50" / 56" |
5" / 8" |
755 lbs |
| WPS5060-20 |
2000 lbs |
60" |
2" |
83"x56"x65" |
50" / 56" |
5" / 8" |
780 lbs |
| WPS5036-30 |
3000 lbs |
36" |
2" |
59"x56"x65" |
50" / 56" |
5" / 8" |
760 lbs |
| WPS5048-30 |
3000 lbs |
48" |
2" |
71"x56"x65" |
50" / 56" |
5" / 8" |
785 lbs |
| WPS5060-30 |
3000 lbs |
60" |
2" |
83"x56"x65" |
50" / 56" |
5" / 8" |
810 lbs |
|
|
