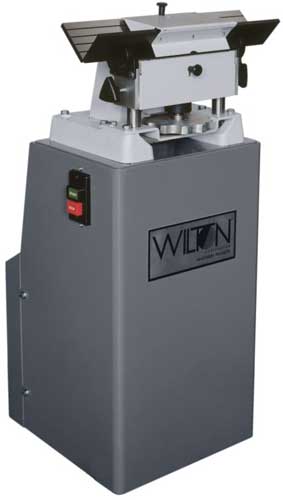

Wilton 4506 Chamfering Machine

Features:

CHAMFERING MACHINE
Precision chamfer, bevel or deburr edges easily
Chamfer angles from 15° to 45°
Easily adjustable depth of cut
The milling cutter head has 8 easy to change inserts, and combined with an adjustable depth of cut and angle of cut capacity, can deliver accurate finishes on a repetitive basis
3" cutter head with 8 replaceable inserts
Cast iron V-table
Heavy-duty, one piece steel stand
Wilton's Chamfering Machine has been designed to offer vast performance capabilities. Easily adjustable, the machine manages jobs such as: chamfering, beveling, and deburring on flats and squares of ferrous and non-ferrous materials.

Specifications
Part Number	4506
Bevel Angle	15°45°
Number of Inserts for Cutter Head	3" milling cutter head with 8 replaceable carbide inserts
Motor 4505	1-1/2HP, 115/230V, 1Ph, Prewired 115V
Overall Dimensions	16 x 19 x 39
Height	50 inch
Width	22 inch
Length	21.5 inch
Net Weight	225 pound
