BOSCH GRL145HV - Horizontal and Vertical

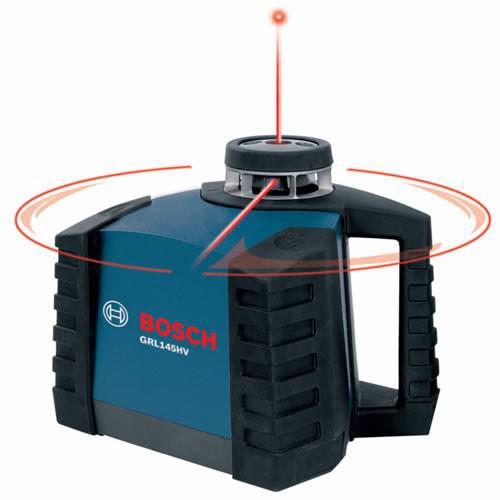

BOSCH GRL145HV - Horizontal and Vertical Electronic Self-Leveling Rotary Laser
BOSCH GRL145HVCK - Complete Interior / Exterier Kit - Horizontal and Vertical Electronic Self-Leveling Rotary Laser

Features
Electronic Horizontal and Vertical Leveling - Ensures accuracy and eliminates set up time
Beam Customization - 0-lengths (0º, 20º 45º, 90º and 180º) and 3 rotation speed (120, 450, 800 RPM) settings for diverse application and lighting conditions
Easy Field Recalibration - Maintain accuracy and prevent downtime
Electronic Horizontal and Vertical Sloping up to +/- 5º
Vertical (Laydown) Jobs - Vertical self-leveling allows rotary laser to be positioned in laydown for vertical applications
Squaring Plumb/Laser Point on Top of Unit - Projects at 90° ±10 seconds relative to the main beam
Robust Housing - Water and dust proof (IP54)
RCR2 Laser Receiver with built-in Remote Control - Radio-frequency remote allows for control of all functions
500-ft RCR2 RF Remote Range - No direct line of sight required and obstructions are no problem
Limited 3-Year Warranty
LCD Display on Both Sides of RCR2 for easy beam location readout



Model GRL145HV - Includes
(1) -- RCR1 Remote Control/Receiver
(4) -- D Batteries
(1) - 9V Battery
(1) -- Pair of Laser Glasses
(1) -- Rod Bracket
(1) -- Wall Mount
(1) -- Magnetic Target
(1) - Carrying Case



Model GRL145HVCK - Includes
(1) -- RCR2 Remote Control/Receiver
(1) -- Tripod
(1) -- Measuring Rod
(4) -- D Batteries
(1) - 9V Battery
(1) -- Pair of Laser Glasses
(1) -- Rod Bracket
(1) -- Wall Mount
(1) -- Magnetic Target
(1) - Carrying Case
Tool Specifications
Accuracy: Up to +/- 1/8-in @ 100-ft (Horizontal & Vertical)
Country of Origin: China
Dimensions: 5-3/4" x 7"x 7"
Laser Diode: Class II 635 nm, ≤ 5 mW
Leveling Type: Electronic Self-Leveling, Up to 6°
Mount Threading: 5/8 - 11
Range: Up to 1,000-ft
Weight (lbs.): 5.5

Bosch 2 year Warranty



Limited Warranty Program

Robert Bosch Tool Corporation ("Seller") warrants to the original purchaser only, that all Bosch lasers and measuring tools will be free from defects in material or work­manship for a period of one (1) year from date of purchase.  Bosch will extend warranty coverage to two (2) years when you register your product within eight (8) weeks after date of purchase.  Product registration card must be complete and mailed to Bosch (postmarked within eight weeks after date of purchase), or you may register on-line at www.boschtools.com/service/productregistration. If you choose not to register your product, a one (1) year limited warranty will apply to your product.

30 Day Money Back Refund or Replacement -

If you are not completely satisfied with the performance of your laser or optical instrument, for any reason, you can return it to your Bosch dealer within 30 days of the date of purchase for a full refund or replacement. To obtain this 30-Day Refund or Replacement, your return must be accompanied by the original receipt for purchase of the laser or optical instrument product.  A maximum of 2 returns per customer will be permitted.

Horizontal and Vertical Electronic Self-Leveling Rotary Laser

GRL145HV GRL145HV Self-Leveled Rotary Laser
GRL145HVCK GRL145HVCK Rotary Laser Exterior Kit
BT160 BT160 Standard Tripod for Rotary Laser
BT170 BT170 Bosch HD Alum Quick Clamp Tripod
BT300 BT300 Bosch HD Alum Elevator QuickClamp
RCR1 RCR1 Rotary Laser Receiver
GR16 GR16 Bosch 16FT AL Level Rod FT/IN/8th



Model GRL145HV - Includes
(1) -- RCR1 Remote Control/Receiver
(4) -- D Batteries
(1) - 9V Battery
(1) -- Pair of Laser Glasses
(1) -- Rod Bracket
(1) -- Wall Mount
(1) -- Magnetic Target
(1) - Carrying Case



Model GRL145HVCK - Includes
(1) -- RCR2 Remote Control/Receiver
(1) -- Tripod
(1) -- Measuring Rod
(4) -- D Batteries
(1) - 9V Battery
(1) -- Pair of Laser Glasses
(1) -- Rod Bracket
(1) -- Wall Mount
(1) -- Magnetic Target
(1) - Carrying Case
GRL145HV
GRL145HV SELF-LEVELED ROTARY LASER <
THIS CST BERGER ITEM HAS BEEN DISCONTINUED AND THERE IS NO REPLACEMENT
Mfg. item #: GRL145HV
BERGRL145HV
FREE SHIPPING ANYWHERE in lower 48 states21
Call for Price

543
GRL145HVCK
GRL145HVCK ROTARY LASER EXTERIOR KI<
THIS CST BERGER ITEM HAS BEEN DISCONTINUED AND THERE IS NO REPLACEMENT
Mfg. item #: GRL145HVCK
BERGRL145HVCK
FREE SHIPPING ANYWHERE in lower 48 states21
Call for Price

543
BT160
BT160 ALUM QUICK CLAMP TRIPOD <
THIS CST BERGER ITEM HAS BEEN DISCONTINUED AND THERE IS NO REPLACEMENT
Mfg. item #: BT160
BERBT160
Ships FREE via UPS to lower 48 states.5
Call for Price

543
BT170
BT170 ALUM HEAVY DUTY QUICK CLAMP T<
THIS CST BERGER ITEM HAS BEEN DISCONTINUED AND THERE IS NO REPLACEMENT
Mfg. item #: BT170
BERBT170
"Ships by UPS, see freight calculator at checkout."2
Call for Price

543
BT300
BT300 ALUM HEAVY DUTY ELEVATOR QUIC<
THIS CST BERGER ITEM HAS BEEN DISCONTINUED AND THERE IS NO REPLACEMENT
Mfg. item #: BT300
BERBT300
"Ships by UPS, see freight calculator at checkout."2
Call for Price

543
RCR1
RCR1 REMOTE/ RECEIVER<
THIS CST BERGER ITEM HAS BEEN DISCONTINUED AND THERE IS NO REPLACEMENT
Mfg. item #: RCR1
BERRCR1
$9.95 shipping this item or combine with CST/Bosch instrument order to get free freight to lower 48 states.1000
Call for Price

543
GR16
GR16 16 ALUM GRADE ROD FT/IN/8TH<
THIS CST BERGER ITEM HAS BEEN DISCONTINUED AND THERE IS NO REPLACEMENT
Mfg. item #: GR16
BERGR16
Ships FREE via UPS to lower 48 states.5
Call for Price

543
