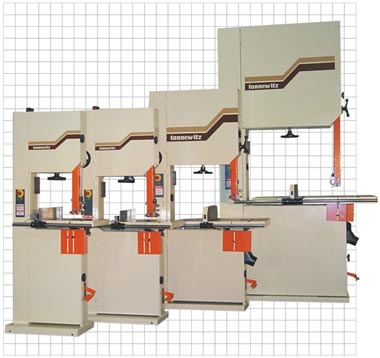

MAX 16/20/24/36 Bandsaws

New Page 1

Advantage Series Production Band Saws -designed for versatility and performance

Features

  • Miter Gauge and Fence STD

  • Sealed Ball Bearings

  • Adjustable Miter Gauge and Rip Fence

  • Magnetic Controls

  • Precision Machined Tilting Table

  • Accurate Blade Tension Indicator

  • Sturdy rack & pinion guidepost

  • Quality Blade Guides

  • Four-sided Blade Guard with Exclusive retracting Rear Guard

  • Interlocking Doors for Safety

  • Tracking Windows

Specifications
MODEL 36" BAND SAW 24" BAND SAW 20" BAND SAW 16" BAND SAW
THROAT CAPACITY (MAX.) 35.8 24 18.9 15.2
UNDERGUIDE CAPACITY (MAX.) 22 STD* 16 STD* 11.8" 10.6"
HORSEPOWER 10 HP STD
230/460 3ph		 3.6 HP^
230/460 3ph		 3.6 HP^
220/440 3ph
220v 1ph 		3.6 HP
220/440 3ph
220v 1ph
BLADE SPEED 5500 SFM 5500 SFM 5500 SFM 5100 SFM
WHEEL DIAMETER 37" 25.2" 19.7" 16"
UPPER WHEEL ADJUSTMENT 5" 2.5" 2" 2"
BLADE WIDTH 3/16" - 1 1/4" 3/16" - 1" 3/16" - 1" 3/16" - 1"
TABLE SIZE 31" X 45" 24 1/2" X 34 1/4" 19" X 25" 16 1/2" X 22 1/2"
TABLE TILT 45oR, 5oL 45oR, 5oL 45oR, 5oL 45oR, 5oL
TABLE HEIGHT 44" 38 1/2" 35.4" 35"
OVERALL HEIGHT 112" 86" 75" 73"
BASE DIMENSIONS 38" X 68 1/2" 25" X 44 1/2" 17" X 29" 16" X 25"
NET WEIGHT 2050 lbs. 760 lbs. 475 lbs. 355 lbs.
BLADE LENGTH 21'9" 15'6" 13'6" 11'4"
^ 5 Horse Power available on 20" & 24"
* Larger Underguide capacity available on 24" & 36"
