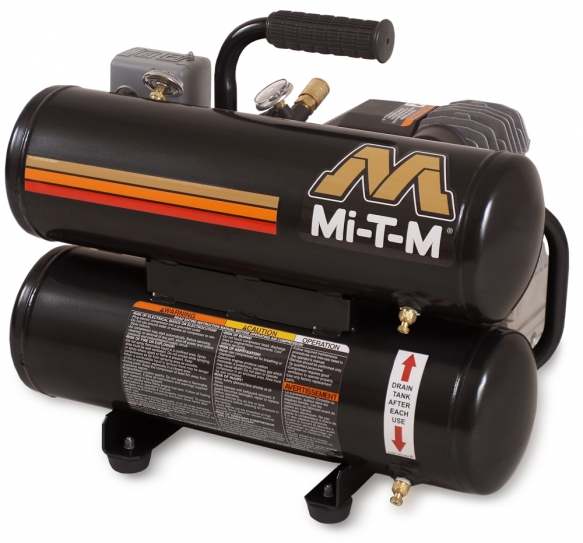

Mi-T-M 5 Gal Single Stage Air Compressor





View Product Sheet

  • Compressor Pump: Quality single stage compressor, Stainless-steel braided discharge hose, Oil lubricated aluminum crankcase, Aluminum head for heat dissipation, Cast iron cylinder, Canister inlet air filter
  • Motor: 120V single-phase 60-Hz. motor with 15-amp plug, Thermal overload motor protection
  • Frame: Compact and portable twin tank design, Powder coated steel frame design, 5-gallon powder coated tank assembly, Protective pump/motor housing, Rubber handle for cushioned grip, Rubber isolators
  • Components: Regulator and two gauges for tank and outlet pressure, Drain valves and pressure relief valve, Start/stop control set at 95 to 125-PSI, Quick connect fittings

Specifications
Model AC1-HE02-05M1
CFM @ 100 PSI 4.1
HP/Motor 2.0/120V, 14.0A Electric
Plug Type NEMA 5-15P
Net Weight 56 lbs.
Shipping Weight 65 lbs.
Length 20.5 in.
Width 15.5 in.
Height 17.5 in.
