Jet Radial Arm Drill Presses

j-720R, 3 ARM RADIAL DRILL PRESS J-1230R, 4 ARM RADIAL DRILL PRESS J-1600R, 5 ARM RADIAL DRILL PRESS
J-720R, 3 ARM RADIAL DRILL PRESS J-1230R, 4 ARM RADIAL DRILL PRESS J-1600R, 5 ARM RADIAL DRILL PRESS



Models
320033 J-720R, 3 ARM RADIAL DRILL PRESS 230/460V
320036 J-1230R, 4 ARM RADIAL DRILL PRESS 230V
320037 J-1230R-4, 4 ARM RADIAL DRILL PRESS 460V
320038 J-1600R, 5 ARM RADIAL DRILL PRESS 230/460V
320039 J-1600R-4, 5 ARM RADIAL DRILL PRESS 460V



J-720R, 3' Arm Radial Drill Press 230/460V

J-720R, 3' Arm Radial Drill Press 230/460V

The apex of heavy-duty JET Radial Arm Drill Presses are built to create precision holes in huge pieces and enhance productivity in even the busiest commercial shops. Operation is enhanced with power spindle feed and coolant systems, safety features and ergonomic design. JET Radial Arm Drill Presses are built to deliver under even the most demanding drilling specifications, and hold material fast for superior performance

Features:

  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
  • The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
Specifications
Stock Number 320033
Style (Type) Radial Drill
Drilling Capacity Mild Steel (In.) 1-1/2
Drilling Capacity Cast Iron (In.) 2
Table Size (L x W) (In.) 23-5/8 x 17-1/2 x 15
Tapping Capacity Mild Steel (In.) 3/4
Tapping Capacity Cast Iron (In.) 1
Boring Capacity Steel (In.) 2-3/8
Boring Capacity Cast Iron (In.) 4
Weight (Lbs.) 2697.0000
Spindle Taper (In. x TPI) MT-4
Distance Spindle to Column (Max.) (In.) 29-1/2
Travel of Head Horizontal (In.) 20-7/8
Quill Travel w/ Powerfeed Engaged (In.) 8-1/4
Quill Down Feed Rates (IPR) 3 (.002, .004, .006)
Arm Travel Vertical (In.) 23-13/16
Elevating Motor 1
Machine Height from Floor (In.) 85-7/16
Column Diameter (In.) 8-1/4
Base Dimensions (In.) 49-5/8 x 25-3/16 x 6-1/4
Motor (HP) 3 HP, 230/460V, 3Ph
Coolant Pump Motor 1/8
Overall Dimensions (L x W x H) (In.) 64 x 32 x 85



J-1230R, 4' Arm Radial Drill Press

J-1230R, 4' Arm Radial Drill Press

The apex of heavy-duty JET Radial Arm Drill Presses are built to create precision holes in huge pieces and enhance productivity in even the busiest commercial shops. Operation is enhanced with power spindle feed and coolant systems, safety features and ergonomic design. JET Radial Arm Drill Presses are built to deliver under even the most demanding drilling specifications, and hold material fast for superior performance

Features:

  • 12 Speeds, 3 feed rates make exotic materials easier to drill, bore and tap
  • Arm raising safety device prevents arm from dropping
  • Automatic tool ejector
  • Centralized control center
  • Counter balanced mechanism for spindle return
  • Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs
  • Independent arm manual clamping system, which locks and unlocks the head and column
  • Push button controls are all reduced to 110V
  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
  • The spindle is made of the finest case hardened steel for extra strength and wear
Specifications
Stock Number 320036 320037
Style (Type) Radial Drill
Drilling Capacity Mild Steel (In.) 1-7/8
Drilling Capacity Cast Iron (In.) 2-5/16
Table Size (L x W) (In.) 25 x 20-1/2 x 16-5/16
Tapping Capacity Mild Steel (In.) 1
Tapping Capacity Cast Iron (In.) 1-1/2
Boring Capacity Steel (In.) 3-3/8
Boring Capacity Cast Iron (In.) 4-3/4
Weight (Lbs.) 4520.0000
Spindle Taper (In. x TPI) MT-4
Distance Spindle to Column (Max.) (In.) 46
Travel of Head Horizontal (In.) 35
Quill Travel w/ Powerfeed Engaged (In.) 9-7/16
Quill Down Feed Rates (IPR) 3 (.002, .004, .006)
Arm Travel Vertical (In.) 35
Elevating Motor 1
Machine Height from Floor (In.) 109-1/2
Column Diameter (In.) 11-13/16
Base Dimensions (In.) 67-3/4 x 28 X 7
Motor (HP) 2-1/2 to 5 HP, 230V, 3Ph 2-1/2 to 5 HP, 460V, 3Ph
Coolant Pump Motor 1/8
Overall Dimensions (L x W x H) (In.) 80 x 39 x 89

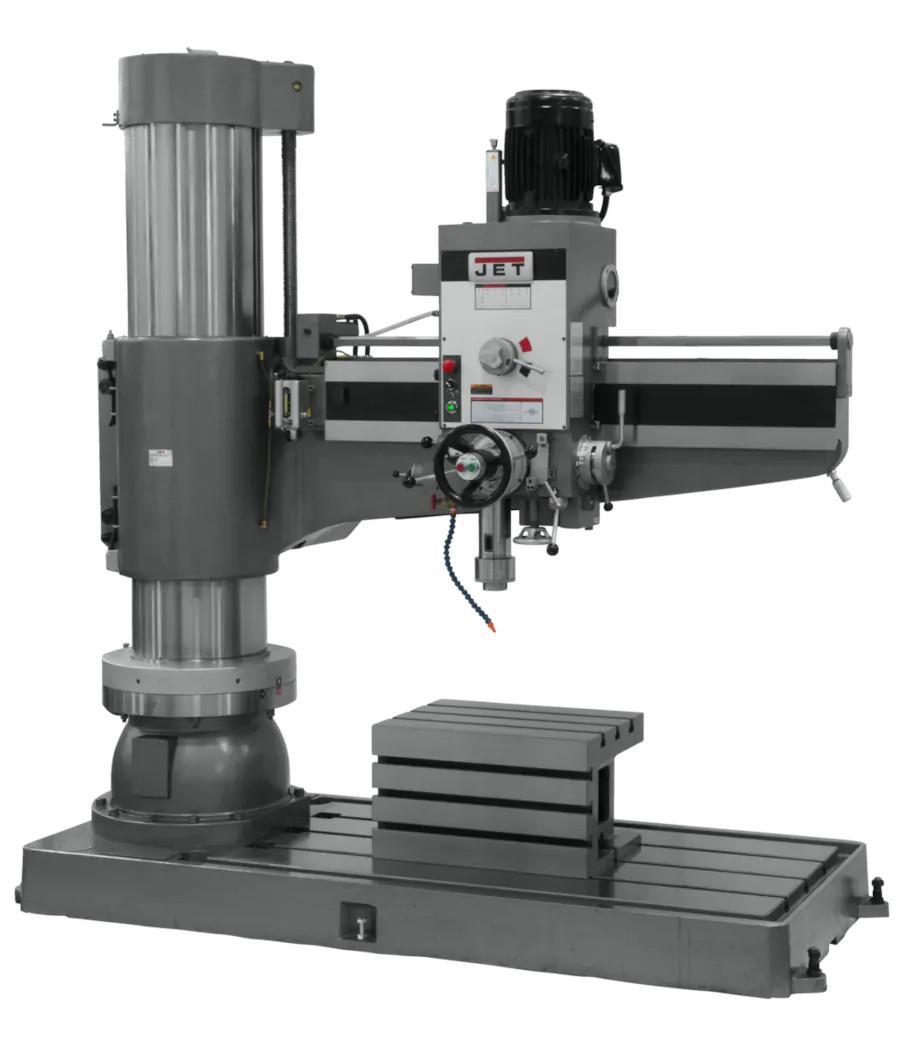

J-1600R, 5' Arm Radial Drill Press

J-1600R, 5' Arm Radial Drill Press

The apex of heavy-duty JET Radial Arm Drill Presses are built to create precision holes in huge pieces and enhance productivity in even the busiest commercial shops. Operation is enhanced with power spindle feed and coolant systems, safety features and ergonomic design. JET Radial Arm Drill Presses are built to deliver under even the most demanding drilling specifications, and hold material fast for superior performance

Features:

  • 12 Speeds, 3 feed rates make exotic materials easier to drill, bore and tap
  • Arm raising safety device prevents arm from dropping
  • Automatic tool ejector
  • Centralized control center
  • Counter balanced mechanism for spindle return
  • Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs
  • Hydraulic head and column clamping
  • Push button controls are all reduced to 110V
  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
  • The spindle is made of the finest case hardened steel for extra strength and wear
  • The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
Specifications
Stock Number 320038 320039
Style (Type) Radial Drill
Drilling Capacity Mild Steel (In.) 2-1/2
Drilling Capacity Cast Iron (In.) 2-5/16
Table Size (L x W) (In.) 27-7/8 x 19-5/8 x 15-3/4
Tapping Capacity Mild Steel (In.) 2
Tapping Capacity Cast Iron (In.) 2-3/8
Boring Capacity Steel (In.) 5
Boring Capacity Cast Iron (In.) 7-3/8
Weight (Lbs.) 11000.0000
Spindle Taper (In. x TPI) MT-5
Distance Spindle to Column (Max.) (In.) 62-1/4
Distance Spindle to Column (Min.) (In.)   13-3/8
Travel of Head Horizontal (In.) 44-7/8
Quill Travel w/ Powerfeed Engaged (In.) 13
Quill Down Feed Rates (IPR) 6 (.003 - .038)
Arm Travel Vertical (In.) 33-15/32
Elevating Motor 2
Machine Height from Floor (In.) 124-58/64
Column Diameter (In.) 17
Base Dimensions (In.) 97-5/8 x 41-11/32 x 8-1/4
Motor (HP) 7-1/2 HP, 230V, 3Ph 7-1/2 HP, 460V, 3Ph
Coolant Pump Motor 1/8
Overall Dimensions (L x W x H) (In.) 116 x 55 x 112 112 x 55 x 116
s-h alt WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
There are no listed accessories.

320033
Mfg. item #: 320033
WMH320033
lease to own for as little as:$287 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$15,299.00

6
320036
++ J-1230R, 4 ARM RADIAL DRILL PRESS 230V ** SHIPS LTL TRUCK FREIGHT-DOCK, WGT = 4620 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 320036
WMH320036
lease to own for as little as:$526 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$27,199.00

6
320037
++ J-1230R-4, 4 ARM RADIAL DRILL PRESS 460V ** SHIPS LTL TRUCK FREIGHT, WGT = 5070 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 320037
WMH320037
lease to own for as little as:$526 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$27,199.00

6
320038
++ J-1600R, 5 ARM RADIAL DRILL PRESS 230/460V, WGT = 11240 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 320038
WMH320038
lease to own for as little as:$1,029 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$54,059.00

6
320039
++ J-1600R-4, 5 ARM RADIAL DRILL PRESS 460V, WGT = 11240 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 320039
WMH320039
lease to own for as little as:$1,029 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$54,059.00

6
