Model CG-550
ChemGrout CG-550

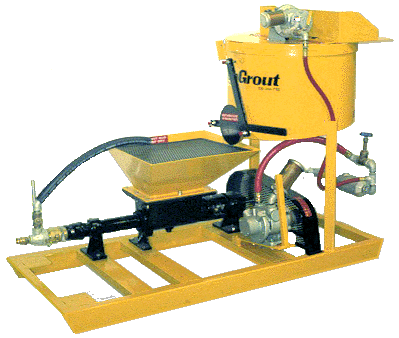

The ChemGrout CG-550 Workhorse series includes both skid and trailer mounted grouting equipment. This workhorse unit is designed to mix and pump neat cement, bentonite, cement/bentonite, cement/sand, non-shrink, self leveling and most packaged grout mixes. These units feature a 45 gallon (170 liters) mixing tank, a 10 gallon (38 liters) holding hopper and a 8 GPM (30 LPM) progressive cavity grout pump. The balanced design of this grout plant allows continuous mixing and pumping, while the hopper is feeding the pump another batch can be mixed. The mix tank is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing. The tank outlet valves are large slide gates that allow the thickest materials to fall easily into the pump hopper. The grout pump is a variable speed, positive displacement, progressive cavity, rotor-stator pump. Operator controls are centrally located for efficient production. All components are easily accessible for operating, cleaning, and maintenance. The trailer mounted unit is road and job site ready equipped with leaf springs, lights and a working platform.
Applications Applications include: marine/underwater, hollow metal filling, windows/doors, precast, machine base, under sealing, slab raising, bridge rehab and encasements.
Specifications | |||||
Model | Progressive Cavity Pump Model | Mixing Tank | Hopper | Max Output | Max Pressure |
CG550/2C4 |
2 Stage, Size 4, Open Throat | 45 Gallon | 12 Gallon | 8 GPM |
|
CG550/3C4 | 3 Stage, Size 4, Open Throat | 45 Gallon | 12 Gallon | 8 GPM | 261 PSI |
Mfg. item #: CG550/2C4/A
CHECG550/2C4/A
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price
227 |
Mfg. item #: CG550/2C4/H
CHECG550/2C4/H
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price
227 |
