ChemGrout CG-500 Pump

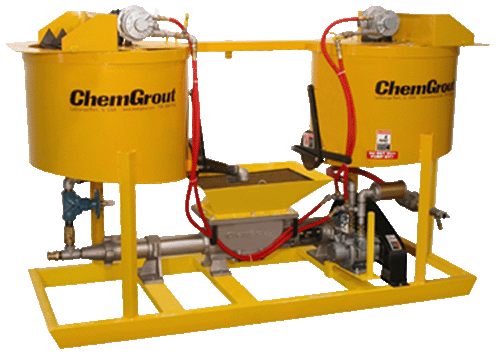

CG500 flexible high production grout plant with double mixing tanks


Model CG-500

ChemGrout CG-500

 The ChemGrout CG-500 series are high volume production skid mounted grout plants.  This versatile unit is designed to mix and pump neat cement, sanded grouts and most commercial pre-blended grout mixes.  These units feature two 70-gallon (265 liters) mixing tanks, a 15-gallon (57 liters) holding hopper and an open throat progressive cavity grout pump.  The unique double mix tank design permits continuous pumping as each mix tank alternates feeding the pump.  Each mixer is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing.  The tank outlet valves are large slide gates that allow the thickest materials to fall easily into the pump hopper.  The holding hopper has an auger in it to keep the material thoroughly mixed while constantly supplying the grout pump with material for the continuous pumping operation.  The grout pump is a variable speed, positive displacement, progressive cavity, rotor-stator pump.  The rugged steel frame stands up to the toughest conditions on the job site.  Operator controls are centrally located for efficient production.  All components are easily accessible for operating, cleaning, and maintenance.

Applications Applications include:

soil compaction, rock grouting, voidfilling, waterproofing, soil anchors, cable bolts, rock bolts, well encasements, contact grouting, well abondonment, marine/underwater, post tensioning, precast, machine base installation, self leveling floor underlayments, slab undersealing, and slabjacking.

Specifications
Progressive Cavity Pump Model Hopper Volume Maximum Output Maximum Pressure
ChemGrout -2C6 Grout Pump
15 Gallons (57 Liters)
20 GPM (75 LPM)
174 PSI (12 BAR)
ChemGrout -3C6 Grout Pum
15 Gallons (57 Liters)
20 GPM (75 LPM)
261 PSI (18 BAR)
There is no further information.
There are no listed accessories.
Call for price. CHECG550/030/A
CG550/2C4/A
Mfg. item #: CG550/2C4/A
CHECG550/2C4/A
lease to own for as little as:$158 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,900.00

4279
EGM
Mfg. item #: EGM
CHEEGM
Call for freight quote on this item or we will confirm freight charges before shipping.1
$320.00

1489
