PowerMatic Dovetailers




1791304 DT45 Dovetailer, 1HP 1PH 115/230V 1791305 DT65 Dovetailer, 1HP 1PH 230V
DT45 DT65



1791304 DT45 Dovetailer, 1HP 1PH 115/230Vs-h alt

The POWERMATIC DT45 manual dovetail machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an eccentric clamp.

1791304 Brochure
1791304 Manual

 DT45 Dovetailer, 1HP 1PH 115/230V has a 5 Year warranty

  • Four centerlines - 1, 1-1/2, 2 and 2-1/2 inch - create a custom appearance
  • Manual eccentric clamping will keep boards firm
  • Eccentric spindle collet for resharpened cutters
  • Spring loaded carriage makes for smooth, effortless dovetail cutting
  • Cutter height of 3/16 to 3/4 inch accommodates different cutting depths and board thicknesses
  • Extra large soft grip handle provides positive control and comfort
  • The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
  • Visual stylus and template aid in guiding the carriage
  • Material stops provide convenient positioning of the workpiece
  • Cast iron and steel construction for added stability and durability
  • 1HP motor transfers plenty of power via the drive belt to the spindle
  • Standard Equipment:
  • Four-sided template
  • Workstops
  • Tool kit
  • Dovetail bit
  • Dust chute with hose
Detailed Specifications
Part Number 1791304
Style (Type) Manual
Number of Dovetail Center Lines
Minimum Work Piece Size (L x W)(In.) 7-7/8 x 2-3/8
Maximum Work Piece Size (In.) 31 x 11
Minimum Dovetail Height (In.) 3/16
Maximum Dovetail Height (In.) 3/4
Minimum Front Thickness (In.) 9/32
Maximum Front Thickness (In.) 1-3/4
Minimum Side Thickness (In.) 9/32
Maximum Side Thickness (In.) 1-3/16
Center to Center Dovetail Spacing (In.) 1, 1-1/2, 2, 2-1/2
Number of Spindles
Spindle Speed (RPM) 18,500
Table Height From Floor (In.) 35
Dust Collection Minimum CFM Required (CFM) 500
Dust Port Outside Diameter (In.) 2-1/2, Rear 4
Motor Power (HP)
Motor Phase
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Height 61.0000
Length 33.0000
Weight 380.0000
Width 33.0000



1791305 DT65 Dovetailer, 1HP 1PH 230V    s-h alt

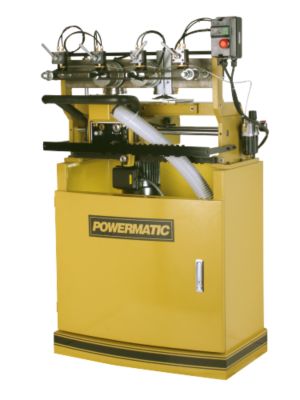

The POWERMATIC DT65 Single Spindle Dovetailer gives quality to the most popular joints of drawer construction. It provides an affordable way to produce cleanly cut, professional dovetails that will enhance your products. The DT65 is complete with 1HP 230V 1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and a four-sided template that produces dovetails on 1, 1-1/2, 2, and 2-1/2 inch centerlines. The use of different dovetail centerlines gives a unique custom appearance.

DT65 Dovetailer, 1HP 1PH 230V has a 5 Year warranty
  • Four centerlines - 1, 1-1/2, 2 and 2-1/2 inch - create a custom appearance
  • Pneumatic clamping provides quick locking and unlocking of the work piece
  • Eccentric spindle collet for resharpened cutters
  • Spring loaded carriage makes for smooth, effortless dovetail cutting
  • Cutter height of 3/16 to 3/4 inch accommodates different cutting depths and board thicknesses
  • Extra large soft grip handle provides positive control and comfort
  • The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
  • Visual stylus and template aid in guiding the carriage
  • Material stops provide convenient positioning of the workpiece
  • Cast iron and steel construction for added stability and durability
  • 1HP motor transfers plenty of power via the drive belt to the spindle
  • Magnetic starter for safety
  • Standard Equipment:
  • Four-sided template
  • Workstops
  • Tool kit
  • Dovetail bit
  • Dust chute with hose
Detailed Specifications
Part Number 1791305
Style (Type) Pneumatic
Number of Dovetail Center Lines
Minimum Work Piece Size (L x W)(In.) 7-7/8 x 2-3/8
Maximum Work Piece Size (In.) 59 x 16-1/2
Minimum Dovetail Height (In.) 3/16
Maximum Dovetail Height (In.) 3/4
Minimum Front Thickness (In.) 9/32
Maximum Front Thickness (In.) 2-3/8
Minimum Side Thickness (In.) 3/8
Maximum Side Thickness (In.) 1-3/16
Center to Center Dovetail Spacing (In.) 1, 1-1/2, 2, 2-1/2
Number of Spindles
Spindle Speed (RPM) 18,500
Table Height From Floor (In.) 45
Dust Collection Minimum CFM Required (CFM) 500
Dust Port Outside Diameter (In.) 2-1/2, Rear 4
Motor Power (HP)
Motor Phase
Motor Voltage (V.) 230 only
Height 63.0000
Length 37.0000
Weight 510.0000
Width 44.0000



s-h alts-h alt WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



There are no listed accessories.
PM9-1791304
DT45 DOVETAILER, 1HP 1PH 115/230V, MANUAL CLAMPING, MADE IN TAIWAN, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 380 LBS
CALL 800-458-3687 X1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS JET ITEM, DOING BUSINESS SINCE 1926!
Mfg. item #: PM9-1791304
WMH1791304
lease to own for as little as:$109 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$5,599.99

1
PM9-1791305
DT65 DOVETAILER, 1HP 1PH 230V, PNEUMATIC CLAMPING, MADE IN TAIWAN, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 510 LBS
CALL 800-458-3687 X1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS JET ITEM, DOING BUSINESS SINCE 1926!
Mfg. item #: PM9-1791305
WMH1791305
lease to own for as little as:$156 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$7,999.99

1
