Porta-Power Kit

Hydraulic Repair Kit
Porta-Power Kit

s-h alt
Stock # 680014

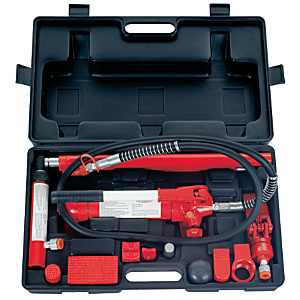

  The Jet BRK-4T 4T HYDRAULIC BODY REPAIR KIT

Features:

  • Let hydraulic power make light work of body or collision repairs
  • Straighten, bend, press or spread steel with 4 ton or 10 ton capacity models
  • Quick connect design allows assembly in seconds
  • Automatic safety overload system protects equipment
  • Heavy wall extension tubes for tough jobs
  • Rugged blow molded case keeps tools organized
  • Proof tested and certified to meet ANSI/ASME B30.1 standards
Detailed Specifications
Part Number 680014
Automatic safety overload system protects equipment Heavy wall extension tubes for tough jobs
Rugged blow molded case keeps tools organized Proof tested and certified to meet ANSI/AMSE B30.1 standards
Straighten, bend, press or spread steel with 4-ton capacity quick connect design allows for assembly in seconds
Brand Jet
Height 7 inch
Length 24 inch
Max Cylinder Pressure 9,000 psi
Max Handle Effort 132 Lbs
Model Number BRK-4T
Net Weight 43 pound
Oil Capacity 20 cubic inch
Overall Stroke 5 in
Piston Stroke 3/4 in
Pump Capacity 4 ton
Serrated Saddle 1 3/8 cubic inch
Width 14 inch

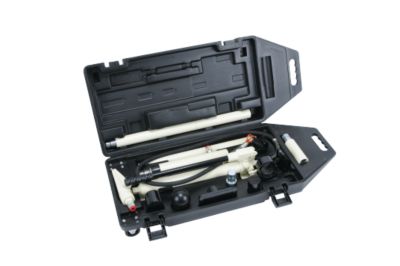

  The Jet BRK-10T 10T HYDRAULIC BODY REAPIR KIT

Detailed Specifications
Part Number 680110
Automatic safety overload system protects equipment Heavy wall extension tubes for tough jobs
Rugged blow molded case keeps tools organized Proof tested and certified to meet ANSI/ASME B30.1 standards
Straighten, bend, press of spread steel with 10 ton capacity Quick connect design allows assembly in seconds
Brand Jet
Height 8 inch
Length 38 inch
Max Cylinder Pressure 9,000 psi
Max Handle Effort 132 Lbs
Model Number BRK-10T
Net Weight 85 pound
Oil Capacity 35 cubic inch
Overall Stroke 6 in
Piston Stroke 3/4 in
Pump Capacity 10 ton
Pump Piston Diameter 1/2 and 1 in
Serrated Saddle 2 cubic inch
Width 16 inch
There are no listed accessories.

680014
BRK-4A, 4 TON CAPACITY, 18-PC. SET
Mfg. item #: 680014
WMH680014
Flat rate of $99 Includes LTL Truck Freight w/Residential, Liftgate & Call Ahead Service25
$242.62

3191
680110
BRK-10A, 10 TON CAPACITY, 17-PC. SET
Mfg. item #: 680110
WMH680110
Flat rate of $99 Includes LTL Truck Freight w/Residential, Liftgate & Call Ahead Service25
$342.92

3191
